Swing-Away Spare Wheel Carrier, Bronco
Section 00-02: Lifting, Jacking and Spare Tire Stowage | 1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual |
Removal and Installation

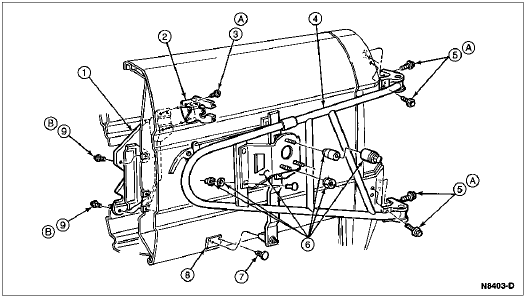

For swing-away spare wheel carrier removal and installation, refer to the following illustration.
Swing-Away Spare Wheel Carrier, Bronco
| Item | Part Number | Description |
|---|---|---|
| 1 | 1A401 | Locking Latch Bracket Reinforcement, Spare Wheel Carrier |
| 2 | 1469 | Spare Wheel Carrier Support |
| 3 | N606690-S55 | Screw and Washer |
| 4 | 1433 | Spare Wheel Carrier |
| 5 | N803207-S100 | Screw and Washer |
| 6 | 1A429 | Spare Wheel Support |
| 7 | 388577-S150 | Pushpin |
| 8 | 47104 | Spare Wheel Scuff Pad |
| 9 | 57472-S2 | Screw and Washer |
| A | — | Tighten to 16-27 Nm (12-20 Lb-Ft) |
| B | — | Tighten to 8-15 Nm (6-11 Lb-Ft) |
