Doors

Front and Rear

Removal

1. Disconnect the battery ground cable (14301).

2. Remove any door trim necessary to access the electrical connector inside the front door (20124). Refer to Section 01-05.

3. Disconnect the electrical connector inside the front door and pull the wire harness out of the front door.

4. NOTE: When marking hinge locations, use a felt marker or equivalent. Do not scratch the paint.

   Mark the door hinge locations to aid installation alignment.

5. Support the front door.

6. Remove the lower door hinge-to-front door bolts.

7. Remove the upper door hinge-to-front door bolts.

8. Remove the front door from the vehicle.

Installation

1. Support the front door in position at the door hinges.

2. Align the door hinge-to-front door match marks made at removal and install the upper door hinge-to-front door bolts.

3. Align the door hinge-to-front door match marks and install the lower door hinge-to-front door bolts.

4. Align the front door. Refer to Adjustments in this section.

5. Tighten the door hinge-to-front door bolts to 26-35 Nm (19-26 lb-ft).

6. Feed the wire harness into the front door and connect the electrical connector.

7. Install any door trim removed to access the electrical connector.

8. Connect the battery ground cable.

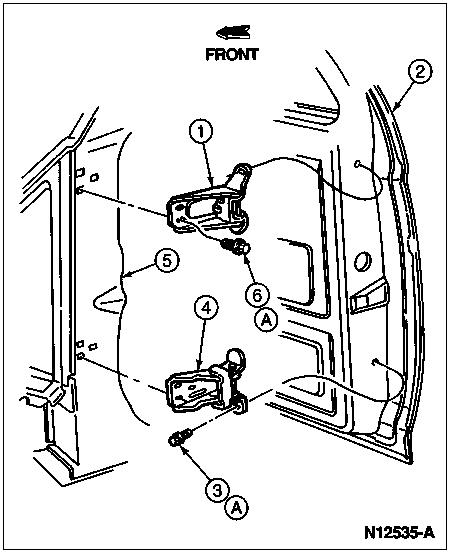

   Front Door, Bronco and F-150, F-250, F-350 and F-Super Duty Chassis Cab







   Item	Part Number	Description
   1	22810	Door Hinge, Upper
   2	20124	Front Door
   3	N803417-S36	Bolt, Door Hinge-to-Front Door
   4	22800	Door Hinge, Lower
   5	02500	Front Body Pillar
   6	N803417-S36	Bolt, Door Hinge-to-Front Body Pillar
   A	—	Tighten to 26-35 Nm (19-26 Lb-Ft)



   Rear Door, F-350 Crew Cab







   Item	Part Number	Description
   1	26800	Rear Door Upper Hinge
   2	28160	Quarter Latch Pillar
   3	26802	Rear Door Lower Hinge and Check
   4	N803417-S2	Door Hinge-to-Rear Door Bolt
   5	N803417-S2	Door Hinge-to-Quarter Latch Pillar Bolt
   6	24630	Rear Door
   A	—	Tighten to 26-35 Nm (19-26 Lb-Ft)
