Section 01-14B: Door Lock Control System, Electronic
1996 F-150, F-250, F-350 and Bronco Workshop Manual
DIAGNOSIS AND TESTING

Electrical Schematics

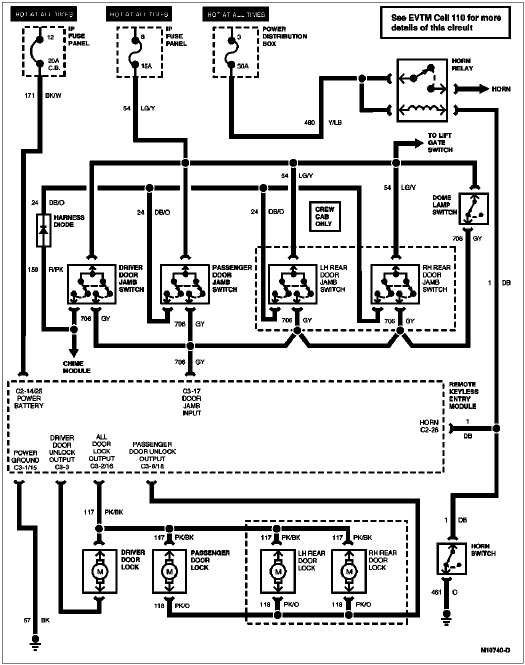

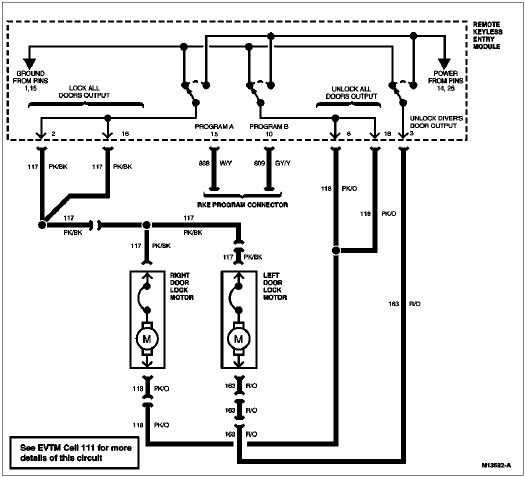

Power Door Locks






Power Door Locks (Continued)

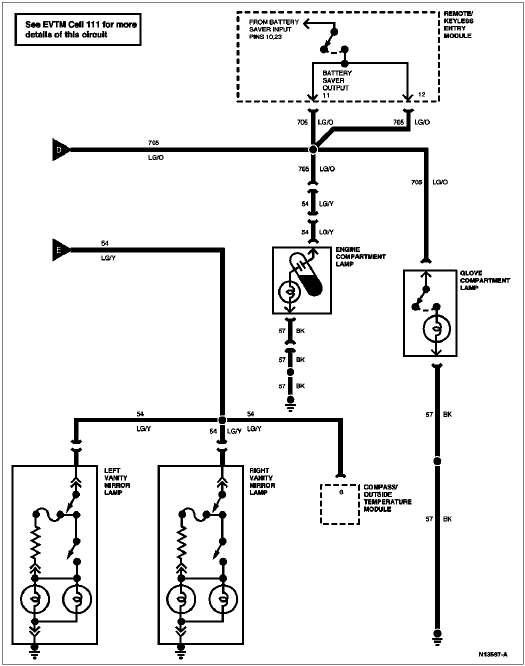

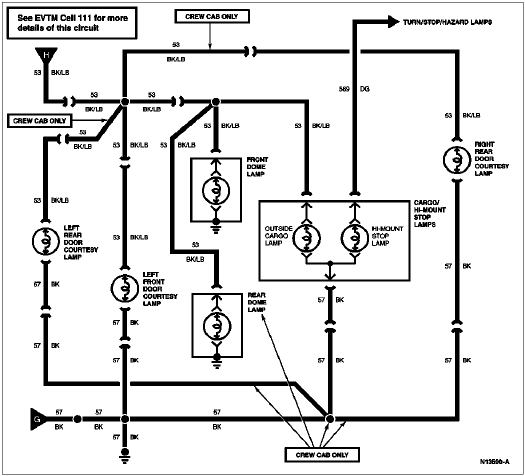

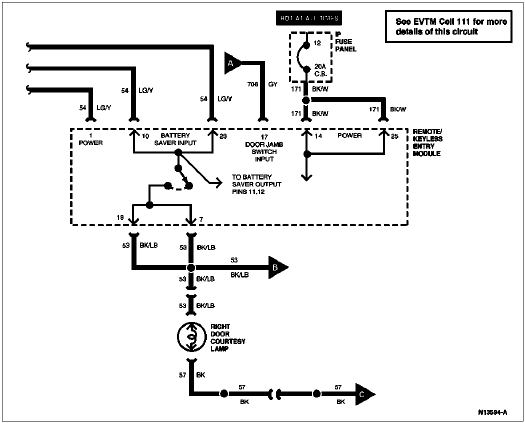

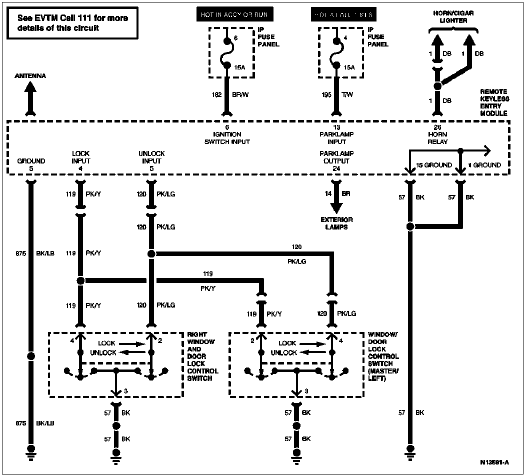

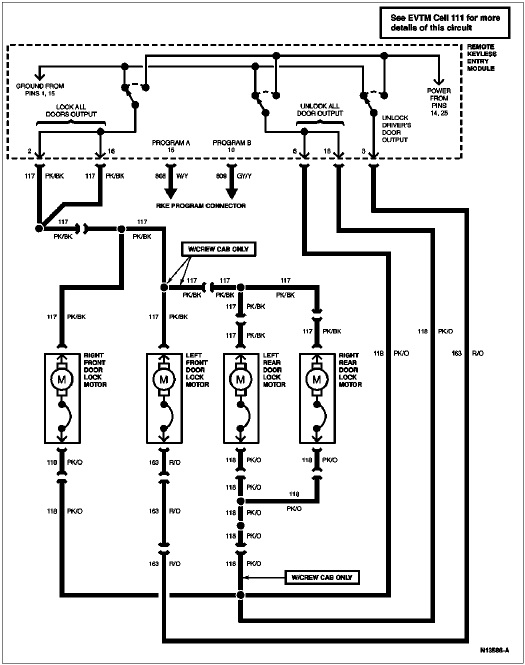

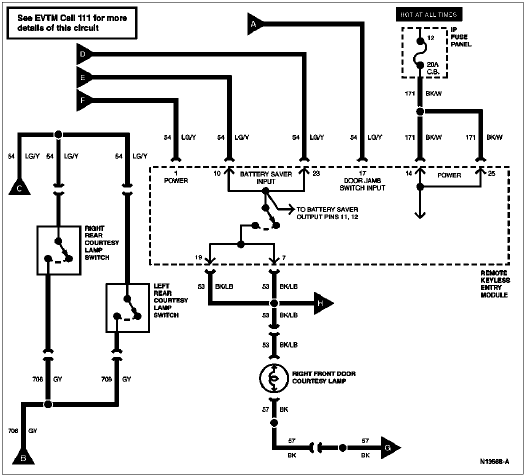

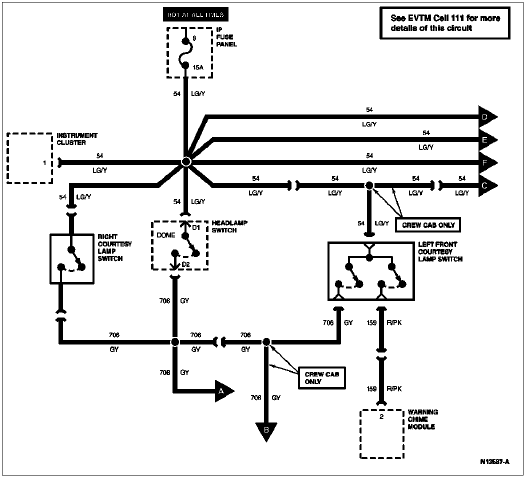

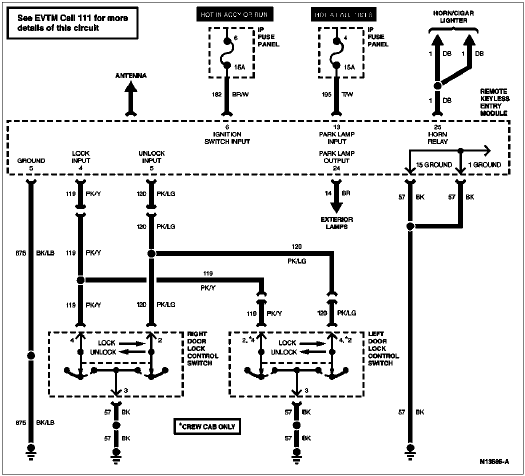

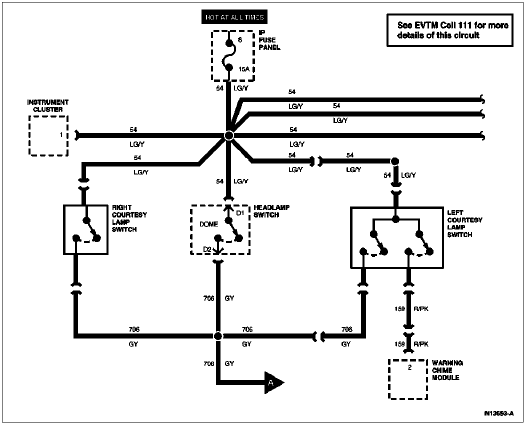

Remote Entry, F-Series






Remote Entry, F-Series (Continued)






Remote Entry, F-Series (Continued)






Remote Entry, F-Series (Continued)






Remote Entry, F-Series (Continued)






Remote Entry, F-Series (Continued)

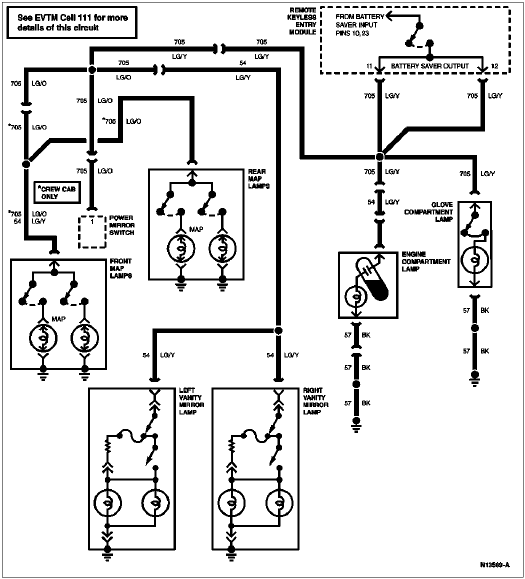

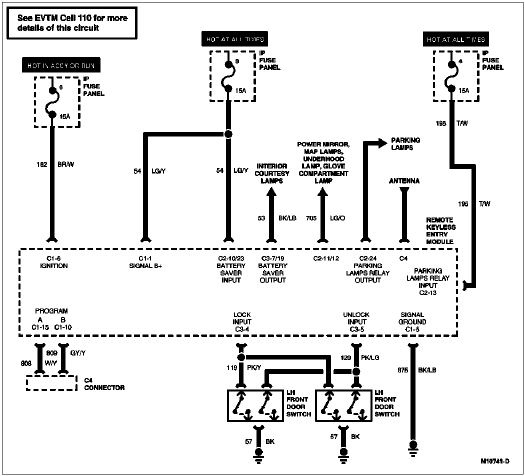

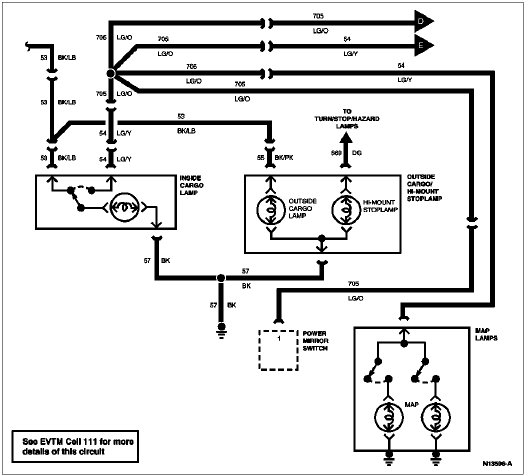

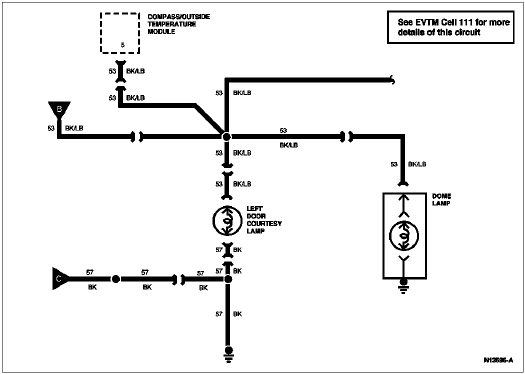

Remote Entry, Bronco






Remote Entry, Bronco (Continued)






Remote Entry, Bronco (Continued)






Remote Entry, Bronco (Continued)






Remote Entry, Bronco (Continued)






Remote Entry, Bronco (Continued)






Remote Entry, Bronco (Continued)

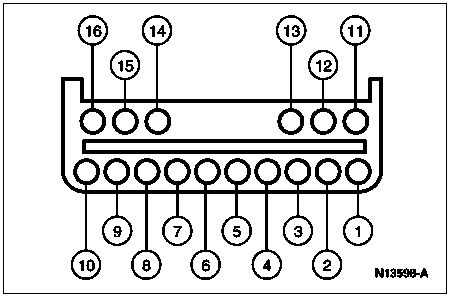

Remote Keyless Entry Module Connector C1, F-Series and Bronco






Pin NumberCircuitCircuit Function
154 (LG/Y)Battery Power
2Not Used
3Not Used
4Not Used
5875 (BK/LB)Signal Ground
6182 (BR/W)Ignition Switch Ground
7Not Used
8Not Used
9Not Used
10809 (GY/Y)Remote Keyless Program B
11Not Used
12Not Used
13Not Used
14Not Used
15808 (W/Y)Remote Keyless Program A
16Not Used



Remote Keyless Entry Module Connector C2, F-Series and Bronco






Pin NumberCircuitCircuit Function
261 (DB)Horn Relay
25171 (BK/W)Battery Power
2414 (BR)Parklamps Output
2354 (LG/Y)Battery Power, Battery Saver Input
22Not Used
21Not Used
14171 (BK/W)Battery Power
13195 (T/W)Parklamps Input
12705 (LG/O)Battery Saver Output
11705 (LG/O)Battery Saver Output
1054 (LG/Y)Battery Power, Battery Saver Input
9Not Used
8Not Used



Remote Keyless Entry Module Connector C3, F-Series and Bronco






Pin NumberCircuitCircuit Function
20Not Used
1953 (BK/LB)Illuminated Entry Output
18118 (PK/O)Unlock All Doors
17706 (GY)Door Jamb Switch
16117 (PK/BK)Lock All Doors
1557 (BK)Ground
7Not Used
6118 (PK/O)Unlock All Doors
5120 (PK/LG)Door Lock Switch (Unlock)
4119 (PK/Y)Door Lock Switch (Lock)
3163 (R/O)Driver's Door Unlock
2117 (PK/BK)Lock All Doors
157 (BK)Ground

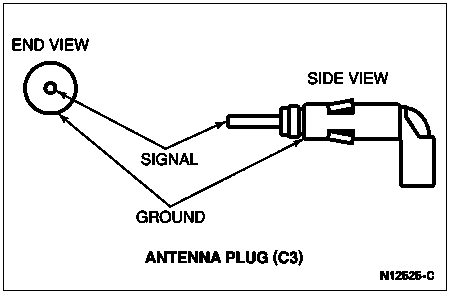

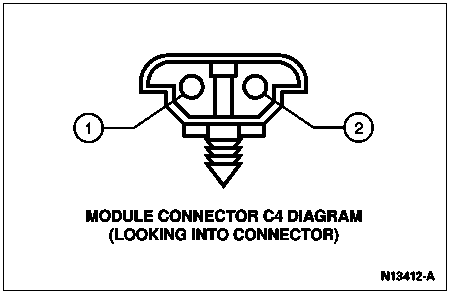

PROGRAM CONNECTOR (C4)
Pin No.Wire No. and ColorConnects To
1808 White, YellowProgram A
2809 Gray, YellowProgram B

NOTE: The C4 program connector is located near the remote entry receiver module, taped approximately 6 to 8 inches from the remote module on the wire assembly connected to the module.
