Section 01-14B: Door Lock Control System, Electronic | 1996 F-150, F-250, F-350 and Bronco Workshop Manual |
The remote entry receiver module is located in the LH side of the lower instrument panel (04320) to the right of the steering column, just above the driver's right foot area.
Removal
Disconnect the three electrical connectors and the antenna connectors and the antenna connector from the module.
Remove two bolts attaching the module to its support bracket and remove the module.
Installation
Follow removal procedures in reverse order.

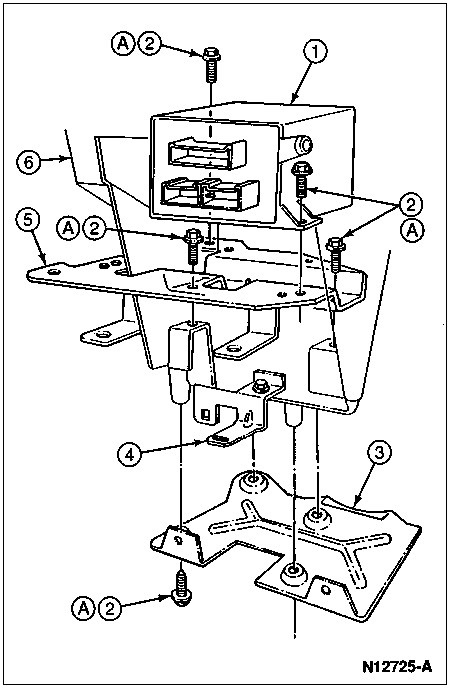

| Item | Part Number | Description |
|---|---|---|
| 1 | 15K602 | Remote Keyless Entry Module |
| 2 | N803876-S36 | Screw |
| 3 | 18B860 | Premium Sound Amp Bracket |
| 4 | 10D876 | Safety Belt Warning Chime Brackets |
| 5 | 14B058 | Air Bag Monitor Bracket |
| 6 | 04320 | Instrument Panel |
| A | — | Tighten to 4.5-6.3 Nm (40-56 Lb-In) |
