Section 07-05: Transmission, Automatic, External Controls
1996 F-150, F-250, F-350 F-Super Duty and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Brake Shift Lock Actuator



Removal

  1. Remove steering column. Refer to Section 11-04.

  1. Unclip wire terminal from brake shift lock actuator.

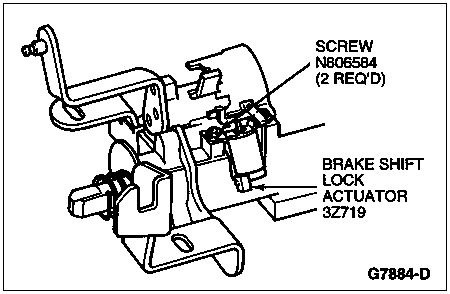

  1. Remove insert plate and brake shift lock actuator by removing two screws.





  1. Pry off clip.



Installation

  1. NOTE: The clip that retains the brake shift lock actuator to the insert plate should not be replaced for service. The clip's sole purpose is an assembly aid for the assembly plant.

    Position insert plate/brake shift lock actuator assembly to the steering column and tighten the screws.

  1. Install the steering column. Refer to Section 11-04.
