Section 17-02: Lighting, Interior
1996 F-150, F-250, F-350, F-Super Duty Chassis Cab and Bronco Vehicles Workshop Manual
DIAGNOSIS AND TESTING

Electrical Schematics — Courtesy Lamps

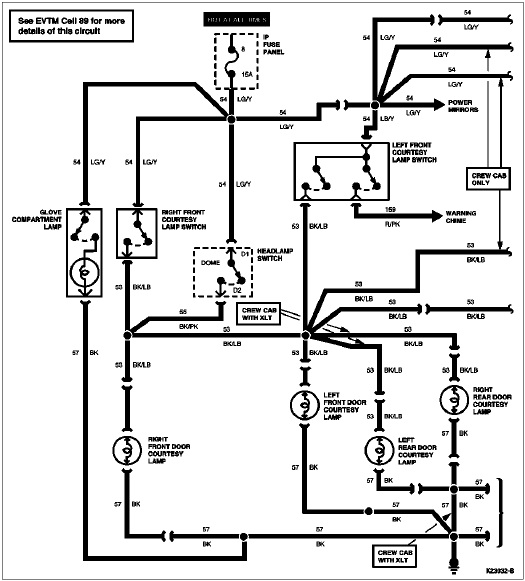

Courtesy Lamps, F-Series Without Remote Keyless Entry

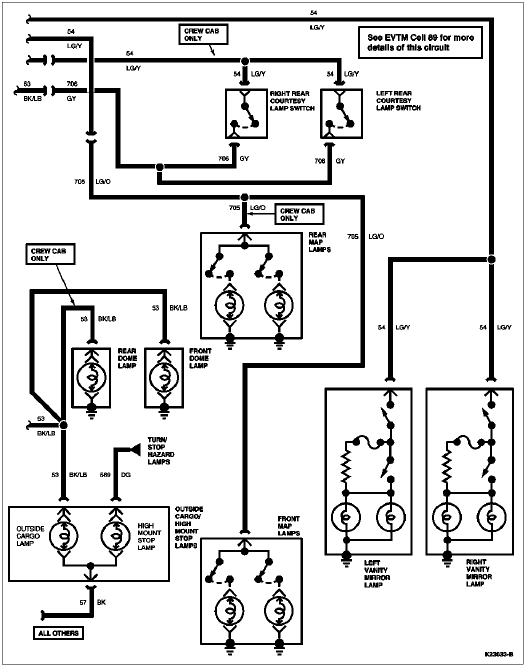

Courtesy Lamps, F-Series Without Remote Keyless Entry (Continued)

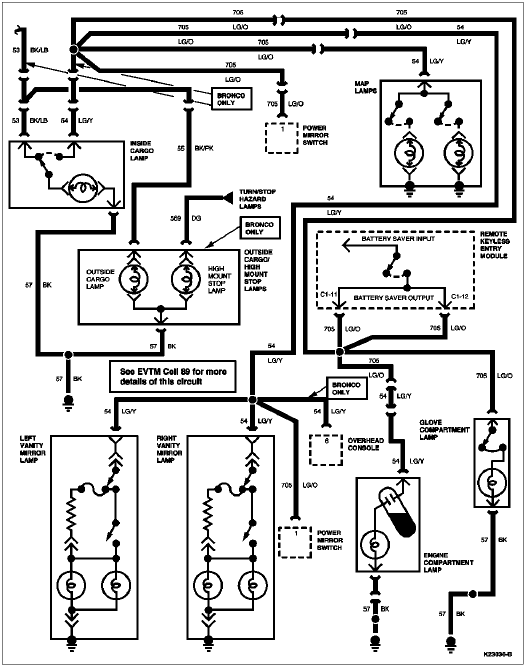

Courtesy Lamps, Bronco Without Remote Keyless Entry

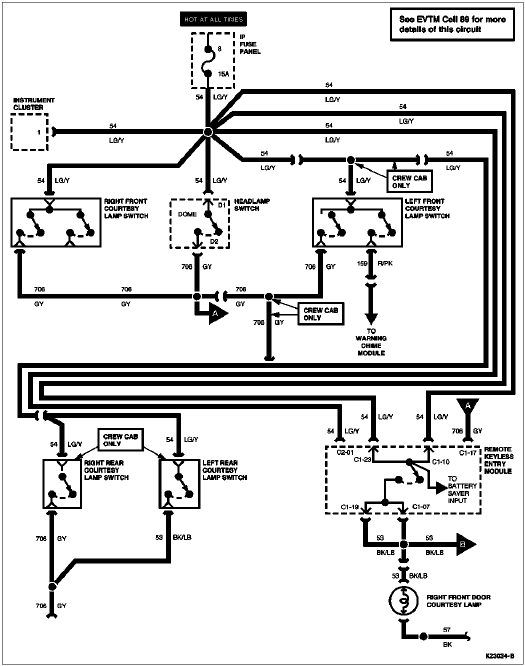

Courtesy Lamps, F-Series/Bronco with Remote Keyless Entry






Courtesy Lamps, F-Series/Bronco with Remote Keyless Entry (Continued)

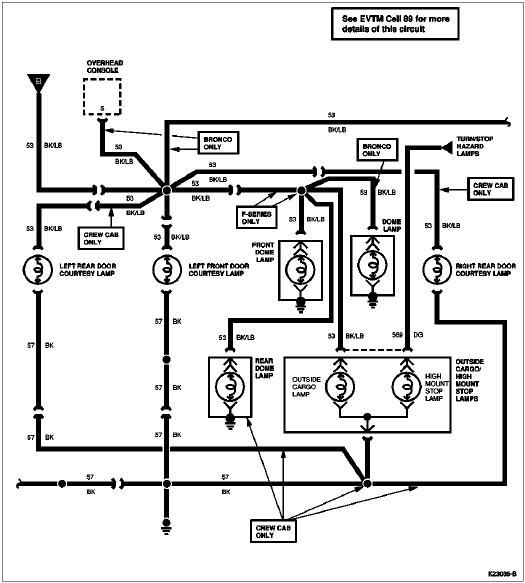

Courtesy Lamps, F-Series/Bronco with Remote Keyless Entry (Continued)

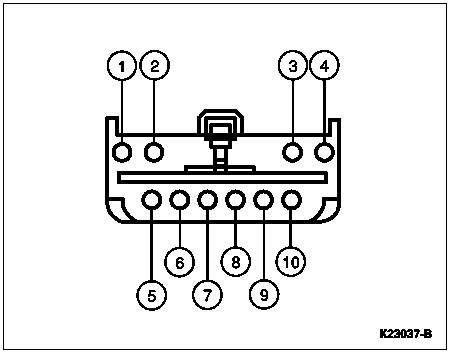

Overhead Console (Compass/Outside Temperature) Module Connector






Pin NumberCircuitCircuit Function
1767 (LB/O)Ambient Temperature Sensor Ground
2233 (DB/Y)Ambient Temp. Sensor Feed
319 (LB//R)Instrument Illumination Input
4—Not Used
553 (BK/LB)Courtesy Lamp Input
654 (LG/Y)Battery Saver Input
7679 (GY/BK)Vehicle Speed Input
8296 (W/P)Power (Hot in Run)
957 (BK)Ground
10—Not Used



Remote Keyless Entry Module Connector C2






Pin NumberCircuitCircuit Function
157 (BK)Ground
2117 (PK/BK)Lock All Doors
3163 (R/O)Driver's Door Unlock
4119 (PK/Y)Door Lock Switch (Lock)
5120 (PK/LG)Door Lock Switch (Unlock)
6118 (PK/O)Unlock All Doors
753 (BK/LB)Illuminated Entry Output
1557 (BK)Ground
16117 (PK/BK)Lock All Doors
17706 (GY)Door Jamb Switch
18118 (PK/O)Unlock All Doors
1953 (BK/LB)Illuminated Entry Output
20—Not Used

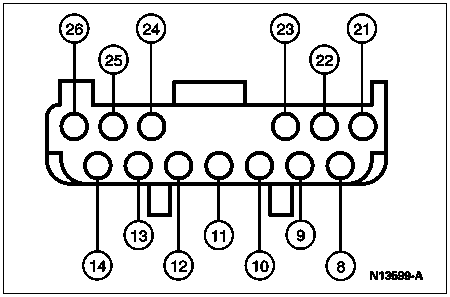

Remote Keyless Entry Module Connector C3






Pin NumberCircuitCircuit Function
8—Not Used
9—Not Used
1054 (LG/Y)Power (Hot at All Times), Battery Saver Input
11705 (LG/O)Battery Saver Output
12705 (LG/O)Battery Saver Output
13195 (T/W)Park Lamps Input
14171 (BK/W)Power (Hot at All Times)
21—Not Used
22—Not Used
2354 (LG/Y)Power (Hot at All Times), Battery Saver Input
2414 (BR)Park Lamp Output
25171 (BK/W)Power (Hot at All Times)
261 (DB)Horn Relay

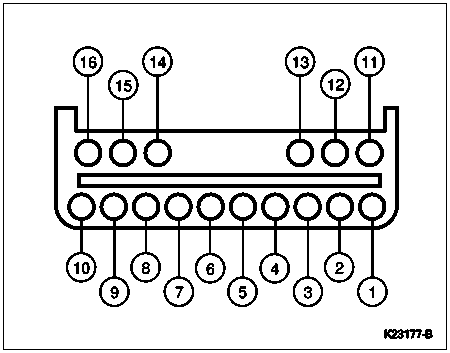

Remote Keyless Entry Module Connector C1






Pin NumberCircuitCircuit Function
154 (LG/Y)Power (Hot at All Times)
2—Not Used
3—Not Used
4—Not Used
5875 (BK/LB)Signal Ground (Diesel Only)
6182 (BR/W)Ignition Switch Ground
7—Not Used
8—Not Used
9—Not Used
10809 (GY/Y)Remote Keyless Program B
11—Not Used
12—Not Used
13—Not Used
14—Not Used
15808 (W/Y)Remote Keyless Program A
16—Not Used



Headlamp Switch Connector






Pin NumberCircuitCircuit Function
B138 (BK/O)Power (Hot at All Times)
IGN137 (Y/BK)Power (Hot in ACC or RUN)
IGN—Not Used *
B2195 (T/W)Power (Hot at All Times)
I294 (W/LB)From Headlamp Switch to Fuse
 19 (LB/R)Instrument Panel Lamp Feed *
D2706 (GY)To Remote Keyless Entry
 55 (BK/PK)Courtesy Lamp Switch to Courtesy Lamp (Without Remote Keyless Entry)
D253 (BK/LB)Interior Lamp Switch Ground Feed *
H15 (R/Y)Headlamp Dimmer Switch Feed
D154 (LG/Y)
57 (BK)		Interior Lamp Switch Feed
Interior Lamp Switch Ground *
R14 (BR)Exterior Lamps Feed
DN484 (O/BK)Radio Liquid Crystal Display Feed
DN—Not Used *
* Motorhome only.
