Transmission Solenoids

1994 PCED OBDI-A

SECTION 6A: EEC-IV Pinpoint Test
Procedures

TC: Transmission Solenoids
Introduction

Note

You should enter this Pinpoint Test only when you have been directed here from Diagnostic Routines, Section 2A.

Remember

This Pinpoint Test is not intended to diagnose components in the transmission. To prevent the replacement of good components, be aware that the following non-EEC areas may be at fault:

Engine

Performance, Vacuum, Cooling, Brakes

Electrical

Generator, Battery integrity, Brake Switch

Transmission

Internal Transmission Components, Linkage, Cooling

This Pinpoint Test is intended to diagnose only the following:

Harness Circuits: TCC, CCS, EPC, SS3/4-4/3 SS1, SS2, SS3, SIG RTN, EPC PWR, and VPWR
Powertrain Control Module (PCM) (12A650) or (12B565 on 7.3L Diesel)

Description

Ranger/Aerostar/Explorer (A4LD)
Taurus/Sable, Continental (AX4S)
Crown Victoria/Grand Marquis, Mark VIII, Town Car,
Mustang, E-Series/F-Series/Bronco (AODE/4R70W) E-Series/F-Series/Bronco (E4OD)
Escort/Tracer (4EAT)
2.0L Probe, California (CD4E)

The A4LD, AX4S, AODE, E4OD and CD4E transmissions use solenoids to shift transmission gear ratios, connect both turbine and impeller in the torque converter, and provide coasting on deceleration. The ground signal is controlled by the PCM and 12 volts VPWR is supplied to the solenoids from the EEC power relay. On 4EAT transmissions, the solenoids are controlled by a positive voltage from the PCM.

Pinpoint Test Schematic

Ranger/Aerostar/Explorer (A4LD)

Test Pin 53
Application	Wire Color
3.0L SFI Aerostar	PK/BK
All Others	P/Y

Solenoid	PCM Signal Output Pin	KOEO DTC
TCC	53 or 14	629
SS 3/4	52 or 51	566

Taurus/Sable, Continental (AX4S)

Test Pin 55—SS-3
Application	Wire Color
Taurus/Sable	W/R
Continental	PK/BK

Solenoid	PCM Signal Output Pin	KOEO DTC
SS1	51	621
SS2	52	622
SS3	55	641
TCC	53	652
EPC	38	624,625

Crown Victoria/Grand Marquis, Mark VIII, Town Car, Mustang, Thunderbird/Cougar, F-Series, E-Series, Bronco (AODE/4R70W)

Test Pin 53
Application	Wire Color
Town Car Mustang, Thunderbird/Cougar	BR/O
All Others	P/Y

Solenoid	PCM Signal Output Pin	KOEO DTC
SS1	51	621
SS2	52	622
TCC	53	652
EPC	38	624, 625

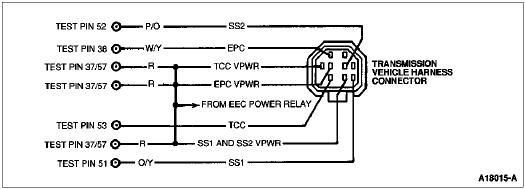

F-Series/E-Series/Bronco (E4OD)

Test Pins 35 and 37/57 — EPCPWR
Application	Wire Color
4.9L, 5.0L, 5.8L & 7.5L	R
7.3L Diesel	W/R

Solenoid	PCM Signal Output Pin	KOEO DTC
SS1	52 (S1)	91/621
SS2	19 (S2)	92/622
CCS	55	93/626
TCC	53	94/629
EPC	38	99/624, 625

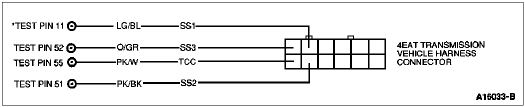

Escort/Tracer (4EAT)

2.0L Probe — Calif. (CD4E)

Solenoid	PCM Signal Output Pin	KOEO DTC
SS1	51	621
SS2	52	622
3-2T/CCS	55	641
TCC	53	652
EPC	38	624, 625

TC: Pinpoint Tests
