Fender, Rear, F-350 with Dual Rear Wheels

Removal

1. Disconnect rear lamp wiring (14405).

2. Remove two upper and one lower wheel hub splash shield (1A095)-to-fender attaching nuts and bolts.

3. Remove front and rear fender brace attaching bolts.

4. Remove fender-to-body attaching bolts.

5. Support fender and remove two fender-to-body retaining nuts (one each upper corner).

6. Remove fender.

Installation

1. Follow removal procedures in reverse order. Refer to the following illustration for tightening specifications.

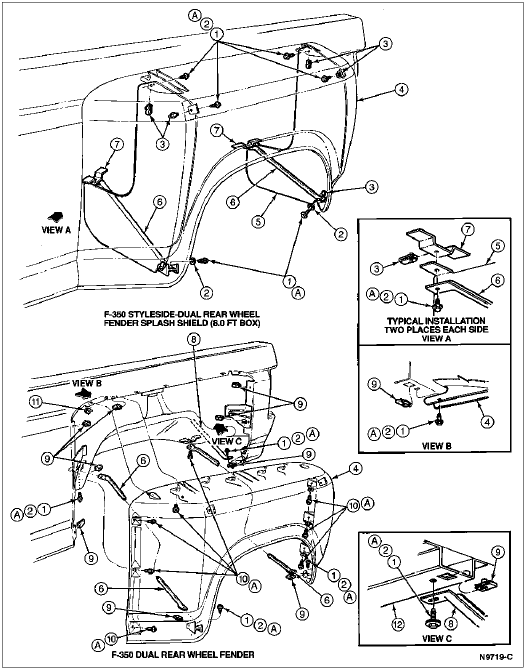

   Fender, Rear, F-350 with Dual Wheels







   Item	Part Number	Description
   1	N606676-S2	Bolt
   2	44722-S2	Washer
   3	N800854-S2	Nut
   4	16312	Fender
   5	28370	Rear Wheel Splash Shield
   6	16340	Rear Fender Brace
   7	—	Bracket (Part of 16340)
   8	277A52	Body Side Lower Brace
   9	N800925-S100	Nut
   10	N606677-S2	Bolt
   11	N620480-S2	Nut
   12	11215	Rear Floor Pan Assembly
   A	—	Tighten to 7-11 Nm (5-8 Lb-Ft)
