Map Pocket and Trim
Section 01-05: Trim, Interior | 1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual |

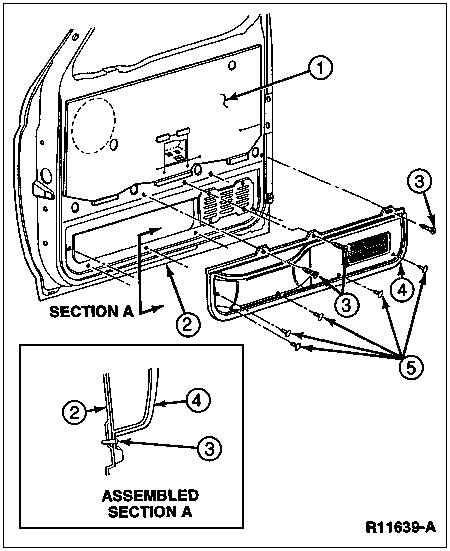

Refer to the following illustration for removal and installation.
Map Pocket and Trim
| Item | Part Number | Description |
|---|---|---|
| 1 | 237A04 | Front Door Trim Shield |
| 2 | 23942 | Front Door Trim Panel |
| 3 | N805123-S303 | Screw and Washer (4 Req'd Each Side) |
| 4 | 642A54 | Map Pocket Assembly |
| 5 | N808983-S | Pushpin (4 Req'd Each Side) |
