Section 01-09: Mirrors, Rearview | 1996 F-150, F-250, F-350 and Bronco Workshop Manual |

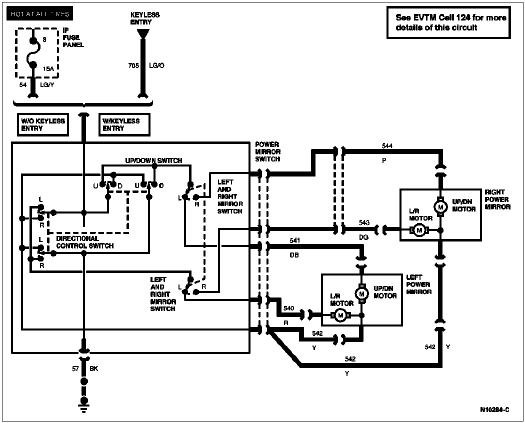

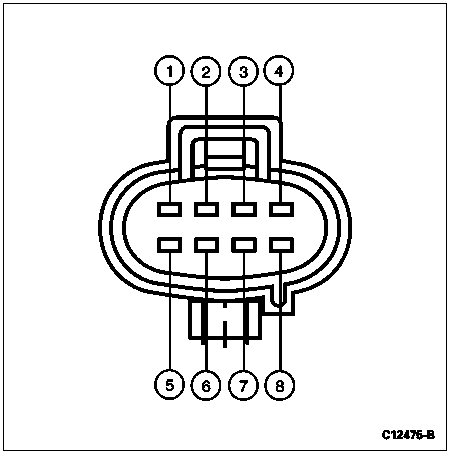

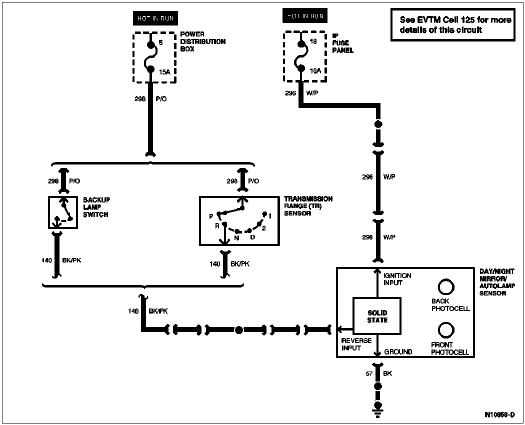

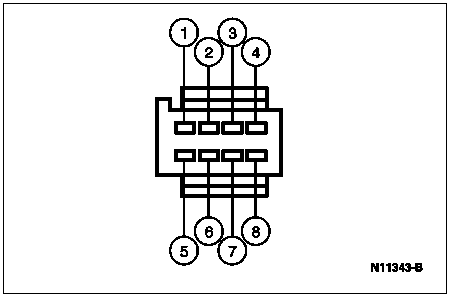

| Pin Number | Circuit | Circuit Function |
|---|---|---|
| 1 | 32 (R/LB) | Starter Control |
| 2 | 298 (P/O) | Fused Run Only Feed |
| 3 | 140 (BK/PK) | Backup Lamp |
| 4 | 32 (R/LB) | Starter Control |
| 5 | 57 (BK) | Ground Circuit |
| 6 | 199 (LB/Y) | Transmission Range Sensor to PCM |
| 7 | 359 (GY/R) | Sensor Signal Return |
| 8 | 463 (R/W) | Electric Transfer Case Module to Transmission Range Sensor |

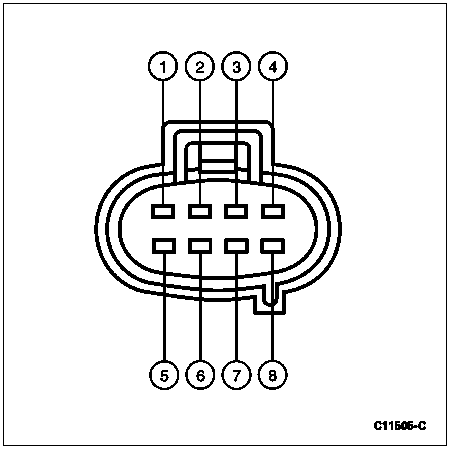

| Pin Number | Circuit | Circuit Function |
|---|---|---|
| 1 | 57 (BK) | Ground Circuit |
| 2 | 359 (GY/R) | Sensor Signal Return |
| 3 | 199 (LB/Y) | Manual Lever Position Sensor to PCM |
| 4 | 463 (R/W) | Electric Transfer Case Module to Manual Lever Position |
| 5 | 32 (R/LB) | Starter Control |
| 6 | 140 (BK/PK) | Backup Lamp |
| 7 | 298 (P/O) | Fused Run Only Feed |
| 8 | 32 (R/LB) | Starter Control |

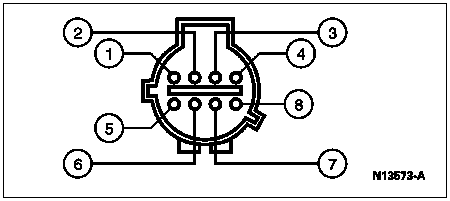

| Pin Number | Circuit | Circuit Function |
|---|---|---|
| 1 | 54 (LG/Y) | Interior Lamp Switch Feed |
| 2 | — | Not Used |
| 3 | 541 (DB) | Mirror Up/Down Motor (B+ = Up) (LH) |
| 4 | 540 (R) | Mirror Left/Right Motor (B+ = Right) (LH) |
| 5 | 57 (BK) | Ground Circuit |
| 6 | 542 (Y) | Remote Mirror Solenoid Control (LH) |
| 7 | 544 (P) | Mirror Up/Down Motor (B+ = Up) (RH) |
| 8 | 543 (DG) | Mirror Left/Right Motor (B+ = Right) (RH) |

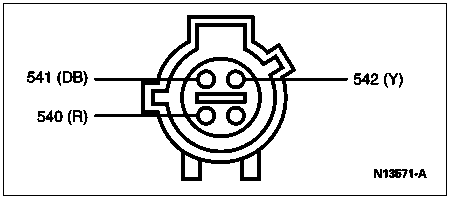

| Pin Number | Circuit | Circuit Function |
|---|---|---|
| 1 | — | Not Used |
| 2 | — | Not Used |
| 3 | 541 (DB) | LH Mirror Up/Down Motor (B+ = Up) |
| 4 | 540 (R) | LH MIrror Left/Right Motor (B+ = Right) |
| 5 | — | Not Used |

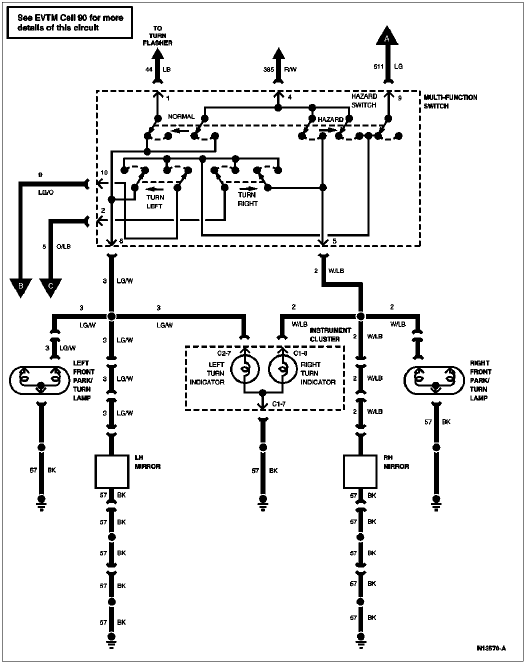

| 6 | 3 (LG/W) | LH Front Turn Signal Lamp |
| 7 | 542 (Y) | LH Remote Mirror Solenoid Control |
| 8 | 57 (BK) | Ground |

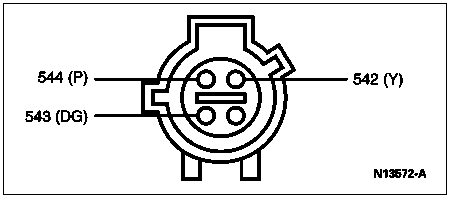

| Pin Number | Circuit | Circuit Function |
|---|---|---|
| 1 | — | Not Used |
| 2 | — | Not Used |
| 3 | 544 (P) | RH Mirror Up/Down Motor (B+ = Up) |
| 4 | 543 (DG) | RH Mirror Left/Right Motor (B+ = Right) |
| 5 | — | Not Used |
| 6 | 2 (W/LB) | RH Front Turn Signal Lamp |
| 7 | 542 (Y) | LH Remote Mirror Solenoid Control |
| 8 | 57 (BK) | Ground |

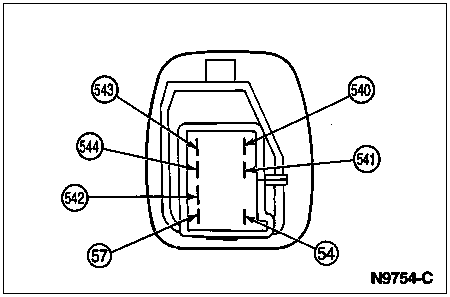

| Directional Movement | LH Mirror | RH Mirror | ||
|---|---|---|---|---|
| Pos. Voltage (+) Circuit 54 | Grd. (-) Circuit 57 | Pos. Voltage (+) Circuit 54 | Grd. (-) Circuit 57 | |
| Up | 541 | 542 | 544 | 542 |
| Down | 542 | 541 | 542 | 544 |
| Left | 540 | 542 | 543 | 542 |
| Right | 542 | 540 | 542 | 543 |
