Section 01-10: Seats and Tracks | 1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual |
Removal
Disconnect wiring, if equipped.
Fold front seat back forward and remove screws attaching center safety belt bracket to center seat.
Remove screws and nuts (one on each side) retaining front seat track to front floorpan. Discard used screws.
Lift the seat and track assembly out of the vehicle.
If servicing a front seat (60012) or center seat, remove nuts from under seat frame and remove seat.
Installation
Apply Caulking Cord D6AZ-19560-A or equivalent that meets Ford specification ESB-M4G32-A around front seat track assembly attaching new screw and stud locations on front floorpan.
If front seat has been removed from front seat back frame (61018), position front seat on front seat back frame and tighten nuts to 18-27 Nm (13- 20 lb-ft).
Position front seat and front seat tracks into vehicle, secure to front floorpan with new retaining screws and nuts. Tighten the screws to 47-63Nm (35-46 lb-ft).
Connect wiring, if equipped.
Fold seat back forward and position safety belt bracket onto center seat. Tighten screws.

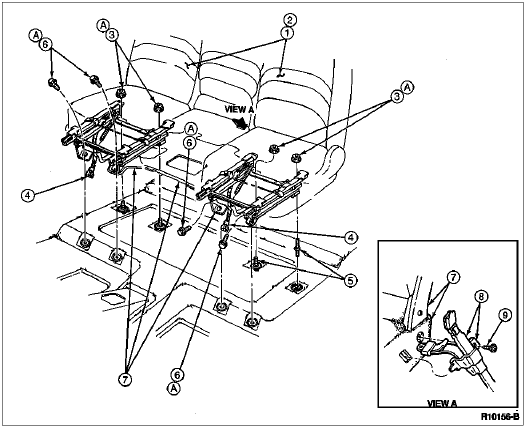

| Item | Part Number | Description |
|---|---|---|
| 1 | 60004 | Front Seat (RH) |
| 2 | 60012 | Front Seat (LH) |
| 3 | N621942-S411 | Nut and Washer Assembly (2 Req'd Each Seat) |
| 4 | — | Wiring Connector (Part of 14401) |
| 5 | N80L366-S411 | Stud (2 Req'd Each Seat) |
| 6 | N806965-S411 | Screw (2 Req'd Each Seat) |
| 7 | 60018 | Center Seat |
| 8 | 612B18 | Safety Belt Assembly |
| 9 | 56904-S424 | Screw (1 Req'd Each Seat Belt) |
| A | — | Tighten to 47-63 Nm (35-46 Lb-Ft) |
