Seat Back Cushion and Upper Frame, Seat Back with Armrest

Removal

1. Remove seat from vehicle. Refer to Seat, Driver and/or Passenger, Bench in the Removal and Installation portion of this section.

2. Unpin the five (5) retaining pins on the back of the front seat trim panel using a flathead screwdriver. Remove front seat trim panel.

3. Cut the seven (7) hog rings retaining the front seat to the front seat back bolster wire.

4. Cut the two (2) hog rings retaining the seat cover to the seat back frame.

5. Unclip J-clips attaching the front seat back cover (64416) to the front seat cushion frame and spring (63100).

6. Cut the 12 hog rings retaining the front seat back cover to the front seat wire.

7. Remove front seat back cover.

Installation

1. Follow the removal procedures in reverse order.

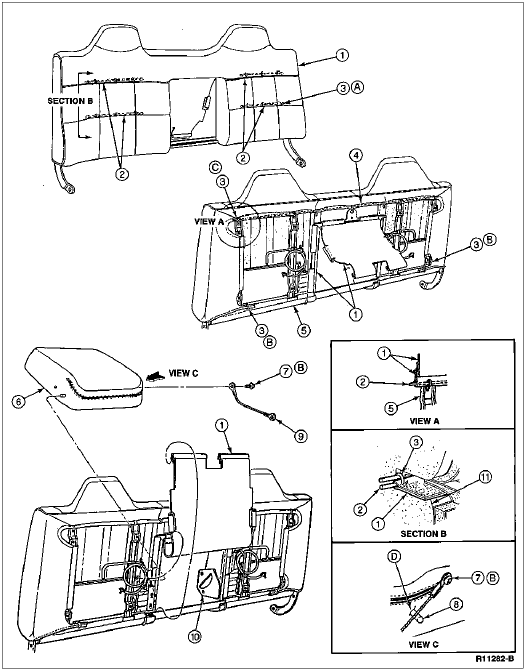

   Seat Back Armrest with Cover







   Item	Part Number	Description
   1	64416	Front Seat Back Cover
   2	6365446-A	Wire
   3	—	Hog Rings (Part of 64416)
   4	5465446	Wire
   5	61018	Front Seat Back Frame
   6	644A18	Front Seat Back Center Armrest
   7	N802735-S2	Screw
   8	—	Tab (Part of 644A18)
   9	654A98	Armrest Check Assembly
   10	63076	Front Seat Center Armrest Bracket
   11	64810	Seat Back Pad
   A	—	3 Req'd Each Side
   B	—	1 Req'd Each Side
   C	—	Seven Required
   D	—	Routing of Cable Must Be As Shown
