Section 01-10: Seats and Tracks | 1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual |
Disassembly
Remove rear fold-down seat from vehicle. Refer to Seat, Rear, Folding, Bronco in the Removal and Installation portion of this section.
Unlock rear seat back release latch (61382) and fold seat forward.
Remove screws attaching rear seat back frame (613A38) to rear seat cushion frame (63160).
Remove rear seat back frame.
Remove torsion spring from rear seat back frame.
Remove rear seat cushion frame from hinge pivot pins in rear seat back frame. Remove rear seat cushion frame.
Assembly
Follow disassembly procedures in reverse order.

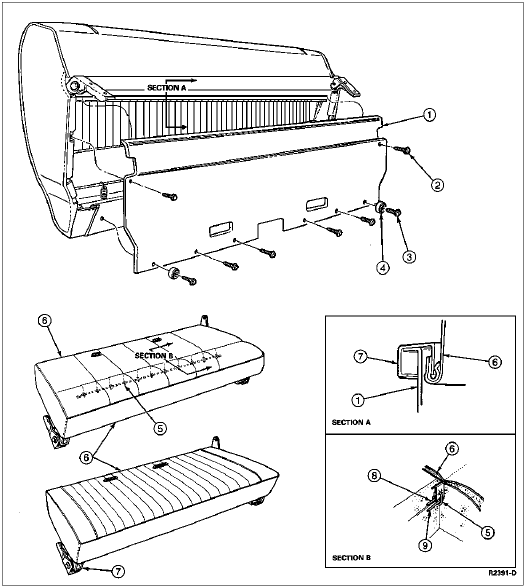

| Item | Part Number | Description |
|---|---|---|
| 1 | 60524 | Rear Seat Cushion Panel |
| 2 | 56912-S2 | Screw (6 Req'd) |
| 3 | 55929-S2 | Screw (2 Req'd) |
| 4 | N805616-S | Bumper (2 Req'd) |
| 5 | 63226 | Hog Rings (11 Req'd) |
| 6 | 63804 | Rear Seat Cushion Cover |
| 7 | 63160 | Rear Seat Cushion Frame |
| 8 | 65447 | Rear Seat Back Trim Retainer Wire |
| 9 | 63840 | Rear Seat Cushion Pad |
