1996 Bronco/F-Series

Section 01-11: Glass, Frames and Mechanisms

1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual

ADJUSTMENTS

Window Mechanism, Rear Door

The rear door window glass can be adjusted by loosening the rear door glass run front or rear lower retainer-to-rear door screws.

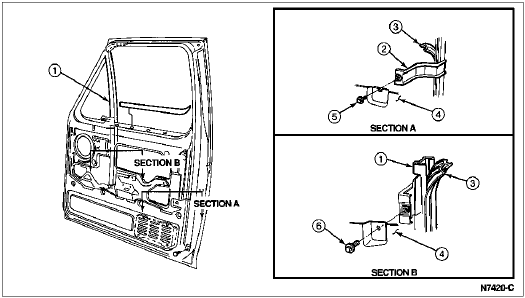

Door Glass Adjustment, F-150, F-250, F-350, F-Super Duty Chassis Cab and Bronco

Item Part Number Description
1 22296 Division Bar, Front Door Vent Window

2 22A00 Front Door Glass Run Latch Side Retainer

3 21596 Front Door Glass Top Run

4 — Front Door Inner Panel
(Part of 20124)

5 800510-S100 Screw, Front Door Glass Run Latch Side Retainer-to-Front Door Inner Panel

6 800510-S100 Screw, Front Door Vent Window Division Bar-to-Front Door Inner Panel

Item	Part Number	Description
1	22296	Division Bar, Front Door Vent Window
2	22A00	Front Door Glass Run Latch Side Retainer
3	21596	Front Door Glass Top Run
4	—	Front Door Inner Panel (Part of 20124)
5	800510-S100	Screw, Front Door Glass Run Latch Side Retainer-to-Front Door Inner Panel
6	800510-S100	Screw, Front Door Vent Window Division Bar-to-Front Door Inner Panel
