Section 01-16: Wiper and Washer Systems | 1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual |
Refer to the following electrical schematics when performing diagnostic pinpoint tests.

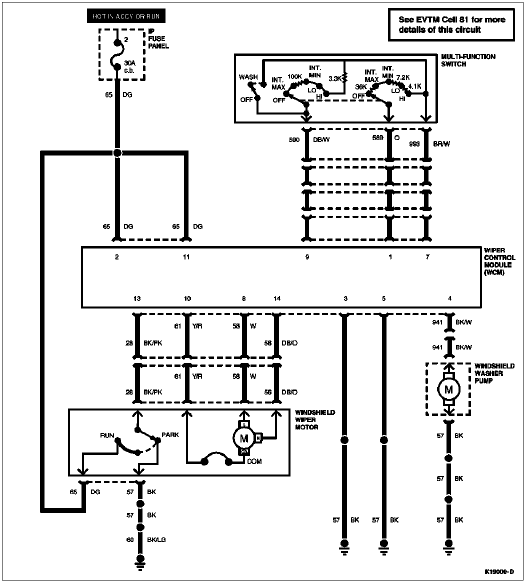

Interval Wiper, Washer Circuit — Except F-53 Motorhome
Interval Wiper, Washer Circuit — F-53 Motorhome

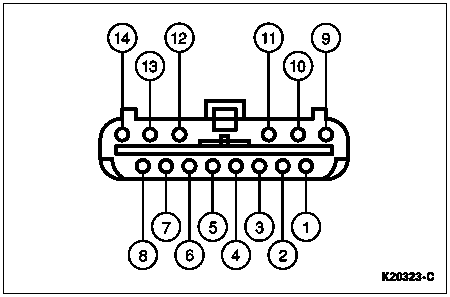

Wiper Control Module Connector
| Pin Number | Circuit | Circuit Function |
|---|---|---|
| 1 | 589 (O) | Multi-Function Switch Mode |
| 2 | 65 (DG) | Ignition Power (Hot in ACC or RUN) |
| 3 | 57 (BK) | Ground Circuit |
| 4 | 941 (BK/W) | Windshield Washer Pump Motor Feed |
| 5 | 57 (BK) | Ground Circuit |
| 6 | — | Not Used |
| 7 | 993 (BR/W) | Multi-Function Switch (Common) |
| 8 | 56 (DB/O) | Wiper Motor LO Speed |
| 9 | 590 (DB/W) | Multi-Function Switch (Internal Mode) |
| 10 | 61 (Y/R) | Wiper Motor (Common) |
| 11 | 65 (DG) | Ignition Power (Hot in ACC or RUN) |
| 12 | — | Not Used |
| 13 | 28 (BK/PK) | Wiper Motor Park Switch |
| 14 | 58 (W) | Wiper Motor HI |
| Pin Number | Circuit | Circuit Function |
|---|---|---|
| 1 | 589 (O) | Multi-Function Switch Mode |
| 2 | 15 (R/Y) | Headlamp Dimmer Switch Feed |
| 3 | 13 (R/BK) | Headlamp Dimmer Switch to Low Beams |
| 4 | 993 (BR/W) | Multi-Function Switch (Common) |
| 5 | 12 (LG/BK) | Headlamp Dimmer Switch to High Beams |
| 6 | 590 (DB/W) | Multi-Function Switch (Internal Mode) |
| 7 | 196 (DB/O) | Instrument Panel Lamps Feed |
| Pin Number | Circuit | Circuit Function |
|---|---|---|
| 1 | 57 (BK) | Ground Circuit |
| 2 | 28 (BK/PK) | Wiper Motor Park Switch |
| 3 | 65 (DG) | Wiper Motor Power (Park Feed) |
| 4 | 61 (Y/R) | Wiper Motor Common (Run) |
| 5 | 56 (DB/O) | Windshield Wiper Motor LO Speed |
| 6 | 58 (W) | Windshield Wiper Motor HI Speed |
