Body Insulators

NOTE: No lubricants of any kind are to be used during body insulator installation.

Refer to the following illustrations for removal and installation.

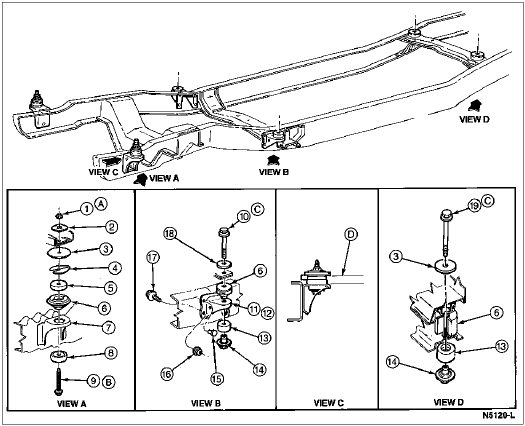

Body Insulators, F-150, F-250, F-350, F-Super Duty

Item	Part Number	Description
1	N621946-S2	Nut and Washer
2	N800788-S2	Spacer
3	N801201-S1	Washer
4	1000145	Shim-Split
5	387676-S	Washer
6	1000192	Insulator (Upper)
7	5A041	Bracket
8	2500155	Insulator (Lower)
9	N800442-S2	Bolt
10	389838-S100	Bolt
11	5077	Bracket (RH)
12	5078	Bracket (LH)
13	1000155	Insulator (Lower)
14	389672-S2	Tubular Nut
15	N647096-S	Rivet
16	N620482-S2	Nut
17	N605801-S2	Bolt
18	385127	Washer
19	387165-S100	Bolt
A	—	Tighten to 46-68 Nm (34-50 Lb-Ft)
B	—	Tighten to 61-101 Nm (45-74 Lb-Ft)
C	—	Tighten to 68-92 Nm (50-68 Lb-Ft)
D	—	32.2mm (1.27 inch)

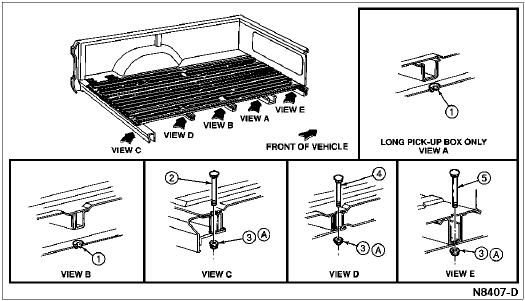

Body Insulators, F-150, F-250, F-350, Styleside Box to Frame

Item	Part Number	Description
1	5C036	Isolator
2	N803022-S40	Bolt
3	N620483-S2	Nut
4	N803020-S40	Bolt
5	N803023-S40	Bolt
A	—	Tighten to 54-95 Nm (40-70 Lb-Ft)

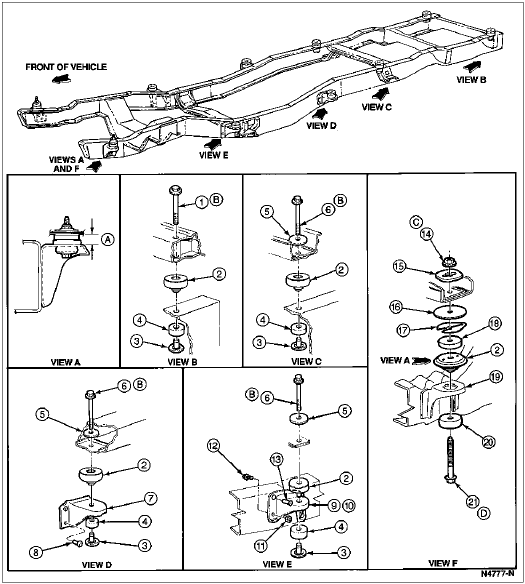

Body Insulators, Bronco

Item	Part Number	Description
1	387165-S100	Bolt
2	1000192	Insulator (Upper)
3	389671-S2	Nut
4	1000155	Insulator (Lower)
5	385127-S2	Washer
6	389838-S100	Bolt
7	5084	Bracket
8	65068-S	Rivet
9	5077	Bracket (RH)
10	5078	Bracket (LH)
11	N620482-S2	Nut
12	N605801-S2	Bolt
13	N647096-S	Rivet
14	N621946-S2	Nut
15	N800788-S2	Spacer
16	N801201-S2	Washer
17	1000145	Shim-Split
18	387676-S	Washer
19	5A041	Bracket
20	2500155	Insulator (Lower)
21	N800442-S2	Bolt
A	—	32.2mm (1.27 Inch)
B	—	Tighten to 68-92 Nm (50-68 Lb-Ft)
C	—	Tighten to 46-68 Nm (34-50 Lb-Ft)
D	—	Tighten to 61-101 Nm (45-74 Lb-Ft)
