CAUTION: Do not immerse crankshaft vibration damper (6316) in petroleum-based solvent. Damage will result to rubber dampening element.Section 03-01D: Engine, Diesel, 7.3L | 1996 F-Series Workshop Manual |
Cleaning
CAUTION: Do not immerse crankshaft vibration damper (6316) in petroleum-based solvent. Damage will result to rubber dampening element.
Clean crankshaft vibration damper using a suitable solvent and dry with filtered compressed air.
Inspection
Inspect crankshaft vibration damper wear sleeve surface for nicks, sharp edges or burrs that might damage crankshaft front seal (6700) during installation.

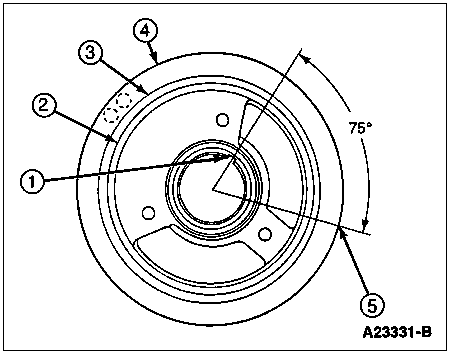

Inspect crankshaft vibration damper members for alignment. Using a protractor, measure the angle between the timing mark and the center of key way. If angle is other than 75 degrees, replace crankshaft vibration damper.
| Item | Part Number | Description |
|---|---|---|
| 1 | — | Keyway (Part of 6316) |
| 2 | — | Inner Member (Part of 6316) |
| 3 | — | Rubber Member (Part of 6316) |
| 4 | — | Outer Member (Part of 6316) |
| 5 | — | Timing Mark (Part of 6316) |
