Section 03-04D: Fuel Charging and Controls, 7.3L Diesel Engine
1996 F-250, F-350 and F-Super Duty Workshop Manual
REMOVAL AND INSTALLATION

Fuel Heater

Removal

  1. Drain fuel filter housing.

  1. Remove fuel filter cap and element.

  1. Disconnect heating element electrical connector.

  1. Unscrew stand pipe from fuel filter housing.

  1. NOTE: Bevel-cut gasket must be oriented properly or assembly will leak.

    Remove fuel heater element.



Installation

  1. Follow removal procedures in reverse order.

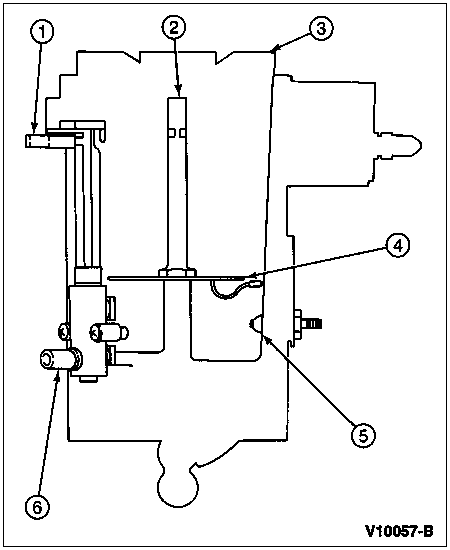

    ItemPart NumberDescription
    1—Water Drain Lever (Part of 9155)
    2—Stand Pipe (Part of 9155)
    39155Fuel Filter Housing
    4—Heating Element (Part of 9155)
    5—Water Sensor (Part of 9155)
    6—Water Drain (Part of 9155)
