Section 03-07A: Ignition, Distributor | 1996 F-Series and Bronco with Gasoline Engines Workshop Manual |
Removal
On a 4.9L engine, loosen distributor cap hold-down screws. On all V-8 engines, disengage spring clips.

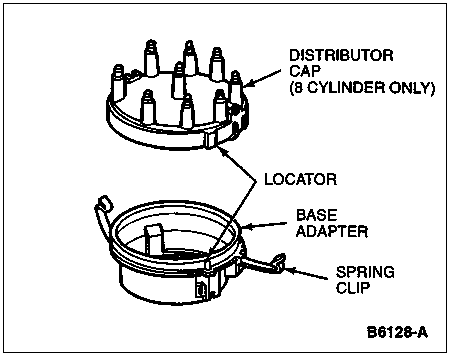

Lift distributor cap (12106) with attached wire set straight off distributor (12127) to prevent damage to the rotor blade and spring. On a V-8 engine, base adapter can be removed by loosening attaching screws.
Installation

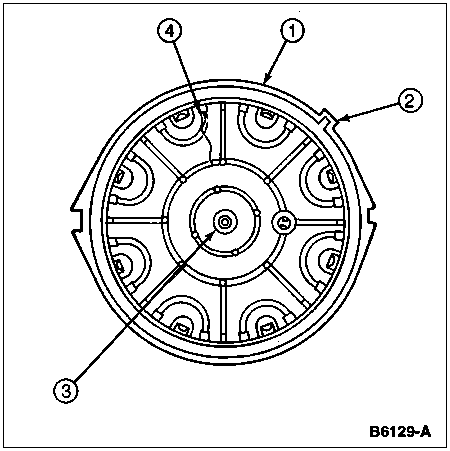

Inspect distributor cap for cracks, broken carbon button, carbon tracks, and terminals for dirt or corrosion.
| Item | Part Number | Description |
|---|---|---|
| 1 | 12106 | Distributor Cap |
| 2 | — | Alignment Locator (Part of 12106) |
| 3 | — | Carbon Button (Part of 12106) |
| 4 | — | Crack or Carbon Track |
Replace the distributor cap if damage is found.
Reinstall any ignition wire and bracket (12280) removed in their proper locations.
If removed, position base adapter (V-8 only) and tighten attaching screws to 2.8-4.0 Nm (25-35 lb-in).
On a 4.9L engine, install the distributor cap, noting the square alignment locator, with attached wire set straight on the distributor. This will prevent damage to the rotor blade and spring. Tighten distributor cap hold-down screws to 2.0-2.6 Nm (18-23 lb-in).
On all V-8 engines, position spring clip and press inward on center of clip until it snaps into place on distributor cap.
