F-Super Duty Motorhome Chassis
An adjustable driveline support plate is used. Although it can be mounted in any one of several positions, only one position is correct for a specific application. The correct position can be determined from the following chart and illustration.
| Support | Wheelbase | Use Mount Holes |
|---|---|---|
| Forward | 208-Inch | No. 3 |
| Forward | 228-Inch | No. 1 |
| Rearward | 208-Inch | No. 4 |
| Rearward | 228-Inch | No. 5 |
| Single | 178-Inch | No. 2 |
| Single | 190-Inch | No. 2 |

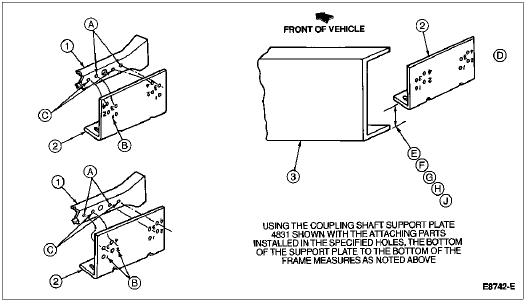

| Item | Part Number | Description |
|---|---|---|
| 1 | — | Frame Crossmember (Part of 5005) |
| 2 | 4831 | Support Plate |
| 3 | — | Frame Side Rail (Part of 5005) |
| A | — | Align with Holes 2 and 4 |
| B | — | Numbers Are Stamped into Part |
| C | — | Align with Holes 1 and 3 |
| D | — | Legs of Support Plate Must Always Face Front of Vehicle As Shown |
| E | — | 74.4mm (2.93 Inch) 208-Inch Wheelbase Forward Support |
| F | — | 10.4mm (0.41 Inch) 208-Inch Wheelbase Rearward Support |
| G | — | 35.6mm (1.40 Inch) 178- and 190-Inch Wheelbase Single Support |
| H | — | 48.5mm (1.91 Inch) 228-Inch Wheelbase Forward Support |
| J | — | 2.5mm (0.10 Inch) 228-Inch Wheelbase Rearward Support (Support Plate Mounting Surface Below Bottom of Frame) |
