Section 06-00: Brake System, Service | 1996 F-150, F-250, F-350, F-Super Duty Chassis Cab, Motorhome Chassis and Bronco Workshop Manual |

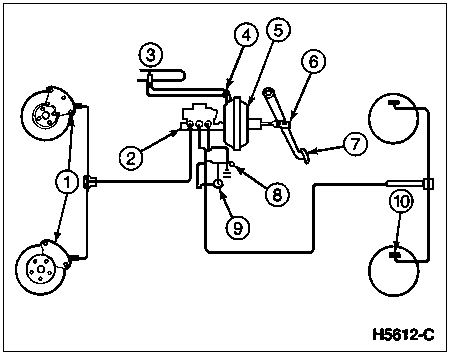

The vehicles are equipped with a pedal-actuated hydraulic dual brake system. The system consists of the following:
| Item | Part Number | Description |
|---|---|---|
| 1 | 2B120 | Disc Brake Caliper |
| 2 | 2140 | Brake Master Cylinder |
| 3 | — | Manifold Vacuum Source |
| 4 | 2365 | Power Brake Booster Check Valve |
| 5 | 2005 | Power Brake Booster |
| 6 | 13480 | Stoplight Switch |
| 7 | 2455 | Brake Pedal |
| 8 | — | Fluid Level Indicator (Part of 2L454)/td> |
| 9 | 11572 | Ignition Switch |
| 10 | 2261 | Rear Wheel Cylinder |
