Tighten the rotor shield bolts to 7-9 Nm (62-80 lb-in).

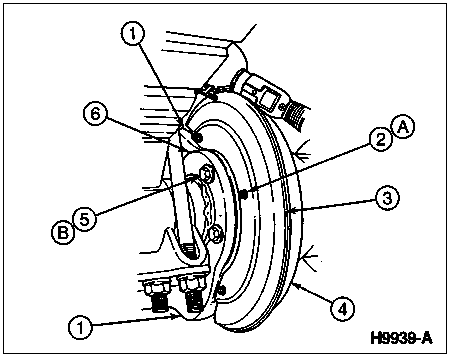

| Item | Part Number | Description |
|---|---|---|
| 1 | 2B292 | Disc Brake Caliper Support Bracket |
| 2 | 42499 | Bolt, Rear Wheel Disc Brake Shield (3 Req'd) |
| 3 | 2C028 | Rear Wheel Disc Brake Shield |
| 4 | 1102 | Rotor |
| 5 | N605831-S2 | Bolt, Disc Brake Caliper Support Bracket-to-Rear Axle Flange (3 Req'd) |
| 6 | — | Rear Axle Flange (Part of 4001) |
| A | — | Tighten to 7-9 Nm (62-80 Lb-In) |
| B | — | Tighten to 100-135 Nm (74-100 Lb-Ft) |
