Section 06-07C: Brake, Power, Hydro-Boost Booster | 1996 F-Super Duty Chassis Cab and Motorhome Chassis Workshop Manual |
Remove the self-locking pin and washer from lower end of brake pedal-to-bellcrank rod.
Remove lower end of the brake pedal-to-bellcrank rod and brake master cylinder push rod bushing (2474) from bellcrank pin and loosen jam nut.
Hold brake pedal (2455) up against rubber stop and turn the brake pedal-to-bellcrank rod until lower hole lines up with bellcrank pin.
Slide the brake pedal-to-bellcrank rod and brake master cylinder push rod bushing onto bellcrank pin and reinstall washer and locking pin.
Tighten jam nut to 50-68 Nm (37-50 lb-ft).

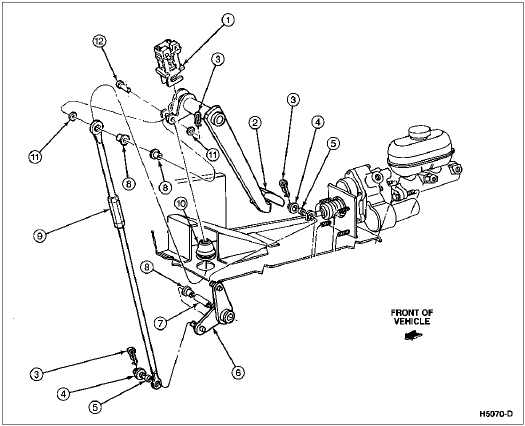

| Item | Part Number | Description |
|---|---|---|
| 1 | 13480 | Stoplight Switch |
| 2 | 2455 | Brake Pedal |
| 3 | 380699-S100 | Self-Locking Pin |
| 4 | 44880-S2 | Flatwasher, 9/16-Inch |
| 5 | 2474 | Brake Master Cylinder Push Rod Bushing |
| 6 | 2B327 | Bellcrank |
| 7 | 2B362 | Bellcrank Spacer |
| 8 | 2474 | Brake Master Cylinder Push Rod Bushing |
| 9 | 2A525 | Bellcrank Rod |
| 10 | 2N060 | Brake Rod Seal Boot |
| 11 | 2B129 | Brake Master Cylinder Push Rod Spacer |
| 12 | 2462 | Brake Pedal Pin |
