1996 Bronco/F-Series

Section 06-09A: Brake System, Anti-Lock, Rear

1996 F-150, F-250, F-350 Workshop Manual

DESCRIPTION AND OPERATION

The RABS system consists of the following components:

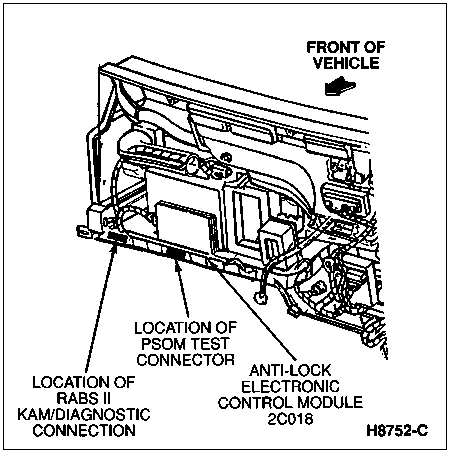

Anti-lock electronic control module (2C018) located in the cab directly behind the glove compartment.
RABS valve (dual solenoid electro-hydraulic valve) located on the left frame side rail (5015) just behind the No. 1 crossmember.
RABS sensor and RABS sensor ring located in the rear axle housing (4010).
Yellow REAR ABS warning light in the instrument cluster.
RABS diagnostic connector located in the cab and clipped on the main instrument panel wiring harness about three inches below and to the right of the anti-lock electronic control module.
Diode/resistor element located under the power distribution box.
RABS test connector with cap located under the hood on the left wheel well.

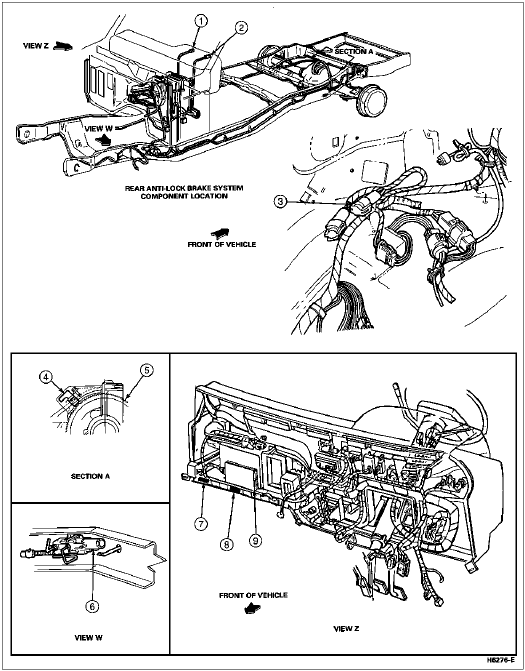

Component Location

Item	Part Number	Description
1	—	Yellow Rear ABS Warning Lamp (Part of 10849)
2	—	Red Brake Warning Lamp (Part of 10849)
3	—	RABS Sensor Test Connector (Part of 12A581)
4	2L373	RABS Sensor
5	4B409	RABS Sensor Ring
6	2B373	RABS Valve
7	—	RABS KAM/Diagnostic Connector (Part of 14401)
8	—	PSOM Test Connector (Part of 14401)
9	2C018	Anti-Lock Electronic Control Module

Component Location
