Section 07-01A: Transmission, Automatic, E4OD | 1996 All F-Series and Bronco with E4OD Automatic Transmission Workshop Manual |

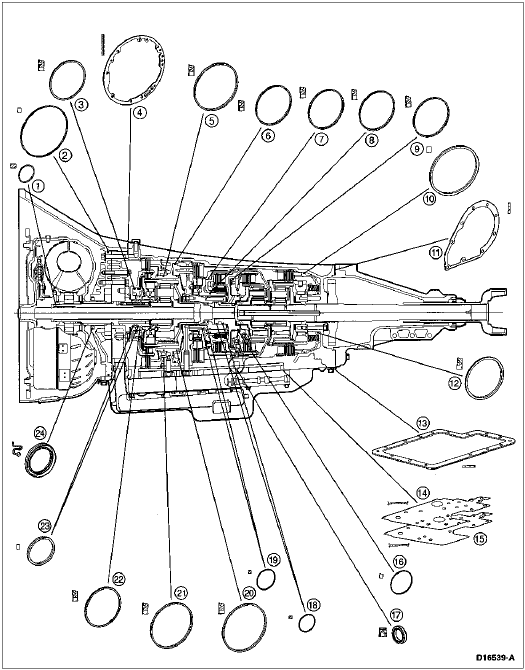

E4OD Seals, Rings and Gaskets Locator
| Item | Part Number | Description |
|---|---|---|
| 1 | 7L323 | Front Pump Support Seal |
| 2 | 7A248 | Front Pump Square Cut OD Seal |
| 3 | 7A548 | Coast Clutch Inner Seal |
| 4 | 7A136 | Pump Gasket |
| 5 | 7F225 | Overdrive Clutch Piston Inner Seal |
| 6 | 7F224 | Intermediate Clutch Piston Outer Seal |
| 7 | 7A548 | Direct Clutch Outer Seal |
| 8 | 7A548 | Direct Clutch Inner Seal |
| 9 | 7A548 | Forward Clutch Piston Outer Seal |
| 10 | 7D403 | Reverse Clutch Piston Outer Seal |
| 11 | 7086 | Extension Housing Gasket |
| 12 | 7D404 | Reverse Clutch Piston Inner Seal |
| 13 | 7A191 | Transmission Pan Gasket |
| 14 | 7C155 | Case to Separator Plate Gasket |
| 15 | 7D100 | Separator Plate to Control Body Gasket |
| 16 | 7A548 | Forward Clutch Piston Inner Seal |
| 17 | 7B498 | Manual Control Lever Oil Seal |
| 18 | 7D025 | Forward Clutch Cylinder Seal (2 Req'd) |
| 19 | 7D429 | Forward Clutch Cast Iron Seal (2 Req'd) |
| 20 | 7F225 | Intermediate Clutch Piston Inner Seal |
| 21 | 7A548 | Overdrive Clutch Piston Outer Seal |
| 22 | 7A548 | Coast Clutch Outer Seal |
| 23 | 7G402 | Coast Clutch Ring Seal, Teflon |
| 24 | 7A248 | Front Pump Seal Assembly |
