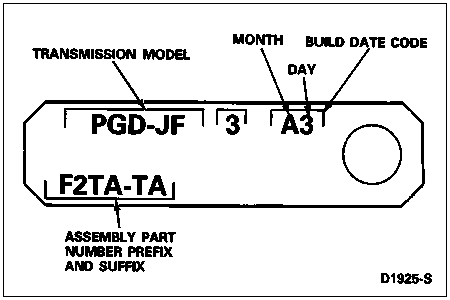

Identification Tags

The identification tag is attached to the intermediate servo lower front cover bolt. The first line on the tag shows the transmission model prefix and suffix. A number appearing after the suffix indicates that the internal parts in the transmission have been changed after initial production start-up. For example, a PGD-JF model transmission that has been changed internally would read PGD-JF1. Both transmissions are basically the same, but some service parts in the PGN-JF transmission are slightly different than the PGD-JF1 transmission. Therefore, it is important that the codes on the transmission identification tag be checked when ordering parts or making inquiries about the transmission.

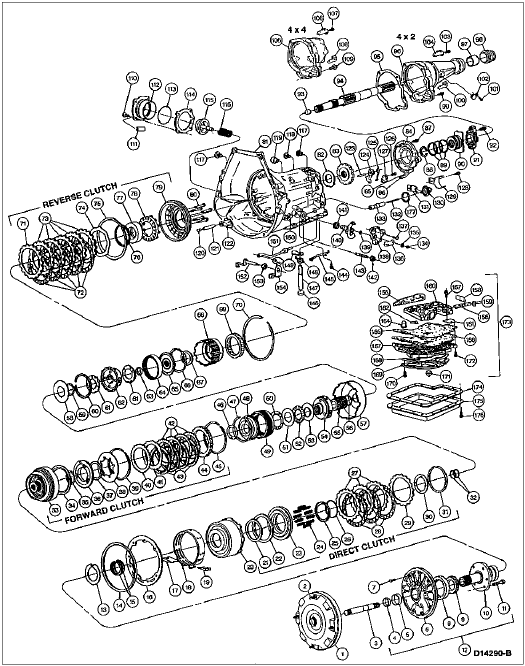

Disassembled Views

Item	Part Number	Description
1	7902	Torque Converter
2	87650-S	Converter Drain Plug, 1/8-27, Dryseal Tapered Thread
3	7017	Input Shaft
4	—	Front Pump Seal (Part of 7A103)
5	—	Front Pump Bushing (Part of 7A103)
6	—	Front Pump Body (Part of 7A103)
7	58619-S2	Bolt
8	—	Pump Driven Gear (Part of 7A103)
9	—	Pump Drive Gear (Part of 7A103)
10	—	Front Pump Support (Part of 7A103)
11	20346-S8	Hex-Head Bolt (Part of 7A103)
12	7A103	Front Pump Assembly
13	7D014	Thrust Washer, No. 1
14	7A248	Front Pump Seal, Large
15	7D025	Intermediate Brake Drum Seal (2 Req'd)
16	7A136	Pump Gasket
17	7D029	Intermediate Brake Band Strut
18	7D034	Intermediate Band
19	7D430	Intermediate Band Anchor Strut
20	7D044	Intermediate Brake Drum
21	7E056	Direct Clutch Piston Inner Seal
22	7A548	Direct Clutch Piston Outer Seal
23	7A262	Direct Clutch Piston
24	7B488	Direct Clutch Piston Spring (10 Req'd)
25	7A527	Direct Clutch Piston Spring Retainer
26	377136-S	Direct Clutch Piston Spring Retainer Ring
27	7B442	Direct Clutch External Spline Plate (Steel)
28	7B164	Direct Clutch Internal Spline Plate (Friction)
29	7B066	Direct Clutch Pressure Plate
30	7D248	Intermediate Brake Drum Thrust Washer No. 2
31	377126-128S 377437 377444-S	Direct Clutch Pressure Plate Retaining Ring
32	7D019	Forward Clutch Cylinder Seal (2 Req'd)
33	7A360	Forward Clutch Cylinder
34	7A548	Forward Clutch Piston Outer Seal
35	7A548	Forward Clutch Piston Inner Seal
36	7A262	Forward Clutch Piston
37	7D256	Forward Clutch Piston Spring Ring
38	7B070	Forward Clutch Piston Disc Spring
39	377127-S	Retaining Ring
40	7B066	Forward Clutch Front Pressure Plate
41	7E085	Forward Clutch Wave Spring
42	7B442	Forward Clutch External Spline Plate (Steel)
43	7B164	Forward Clutch Internal Spline Plate (Friction)
44	7B066	Forward Clutch Rear Pressure Plate
45	377127-S 377437-S 377444-S 386841-2-S	Forward Clutch Pressure Plate Retaining Ring
46	7D090	Forward Clutch Hub Thrust Washer No. 4
47	377132-S	Retaining Ring
48	7B067	Forward Ring Gear Hub
49	7D392	Forward Ring Gear
50	7A166	Forward Planet Carrier Thrust Washer No. 5
51	7D236	Forward Clutch Hub Thrust Race
52	7D234	Forward Clutch Hub Thrust Bearing Assembly No. 3 and No. 6 (2 Req'd)
53	7D235	Forward Clutch Hub Thrust Race
54	7A398	Forward Planet Carrier Assembly
55	7D063	Sun Gear
56	377300-S	Front Retaining Ring
57	7D064	Input Shell
58	7D066	Input Shell Thrust Washer
59	377300-S	Rear Retaining Ring
60	377155-S	Retaining Ring
61	7D423	Reverse Planet Carrier Thrust Washer No. 7 and No. 8
62	7D006	Reverse Planet
63	387031-S5	Retaining Ring
64	7A153	Output Shaft Ring Gear
65	7D164	Output Shaft Hub
66	377132-S	Output Shaft Hub Retaining Ring
67	7D422	Output Shaft Hub Thrust Bearing No. 9
68	7B067	Reverse Clutch Hub
69	7A089	One-Way Clutch Assembly
70	385044-S	Reverse Clutch Retaining Ring
71	7B066	Reverse Clutch Pressure Plate
72	7B164	Reverse Clutch Internal Spline Plate (Friction)
73	7B442	Reverse Clutch External Spline Plate (Steel)
74	7E085	Reverse Clutch Wave Spring
75	7D403	Reverse Clutch Piston Outer Seal
76	7D404	Reverse Clutch Piston Inner Seal
77	—	One-Way Clutch Race, Inner (Part of 7D164)
78	7D406	Reverse Clutch Retainer and Spring Assembly
79	7D402	Reverse Clutch Piston
80	7D167	One-Way Clutch Inner Tag Attaching Bolt (5 Req'd)
81	7005	Case
82	7B368	Output Shaft Thrust Washer No. 10
83	7A233	Output Shaft Park Gear
84	7C232	Fluid Distributor Sleeve
85	7D000	Fluid Distributor Tube, Inlet
86	7D000	Fluid Distributor Tube, Outlet
87	20386-S8	Bolt (4 Req'd)
88	387035-S5	Retaining Ring
89	7D011	Governor Housing Seal Ring (3 Req'd — 2 Teflon®, 1 Cast Iron)
90	7D220	Governor Fluid Collector Body
91	7C063	Governor
92	34805-S8	Bolt (4 Req'd)
93	378259	Cup Plug
94	7060	Output Shaft
95	7086	Extension Housing Gasket
96	7A039	Extension Housing (4x2)
97	7A034	Extension Housing Bushing
98	7052	Extension Housing Fluid Seal
99	380207-S2	Bolt (2 Req'd) (4x2 Only)
100	7G496	Switch Wiring Harness Retainer (4x2)
101	57621-S2	Screw and Washer Assembly, 1/4-20 x .62
102	7H183	Extension Housing Plug (Used to Plug Speedometer Gear Hole)
103	380209-S	Bolt (4 Req'd) (4x2)
104	7G496	Vacuum Tube Retainer (4x2)
105	7A039	Extension Housing (4x4)
106	7G495	Vacuum Tube Retainer (4x4)
107	380209-S	Bolt (4 Req'd) (4x4)
108	7G496	Switch Wiring Harness Retainer (4x4)
109	58642-S2	Bolt (2 Req'd) (4x4 Only)
110	57633-S2	Bolt (4 Required)
111	—	Transmission Model Identification Tag (Not Serviced)
112	7D027	Intermediate Band Servo Cover
113	7D024	Intermediate Band Servo Cover Piston Seal
114	7D026	Intermediate Band Servo Cover Gasket
115	7D021	Intermediate Band Servo Piston and Rod Assembly
116	7D028	Intermediate Band Servo Piston Spring
117	7D273	Fluid Tube Connector (2 Required)
118	87650-S	Pipe Plug, 1/8-27 Dryseal (Used in Case for Measuring Throttle Valve Pressure)
119	7034	Vent
120	7E206	Intermediate Band Servo Lever Shaft Retainer
121	7D433	Intermediate Band Actuating Lever Shaft
122	7330	Intermediate Servo Band Lever
123	7D071	Parking Pawl Shaft
124	7A441	Parking Pawl
125	7D070	Parking Pawl Return Spring
126	379058-S	Screw and Washer Assembly
127	7D419	Park Rod Guide Plate (Serviced in Kits Only)
128	56119-S	Hex Flg. Head Bolt, 5/16-18 x .82 (7F013, 7F006 and 7A377 to 7005)
129	7F013	Vacuum Diaphragm Heat Shield
130	7A377	Throttle Valve Control Diaphragm
131	7F006	Vacuum Diaphragm Clip
132	7A380	Throttle Control Valve Rod
133	7D080	Primary Throttle Valve
134	33798-S8	Nut, 5/16
135	34806-S7	Hex Lockwasher
136	7A394	Downshift Control Outer Lever
137	55651-S2	Bolt
138	7A247	Park/Neutral Position Switch
139	386078-S	Throttle Control Outer Lever Seal
140	7A256	Manual Control Lever
141	7B498	Manual Control Lever Fluid Seal
142	375185-S100	Lock Nut
143	7A178	Adjusting Screw
144	56501-S2	Hex Flg. Bolt, 1/4-20 x .50
145	7A261	Manual Valve Detent Lever Spring
146	6572	Parking Plate Shaft Plug
147	7D418	Parking Plate Shaft
148	7D417	Parking Plate Torsion Spring
149	7D414	Parking Rod Support Plate
150	87650-S	Pipe Plug, 1/8-27 Dryseal Tapered Thread (Used in Case for Measuring Pump Pressure)
151	7D411	Parking Pawl Actuating Rod (Serviced in Kits Only)
152	7D261	Downshift Detent Lever
153	380525-S	Hex Lock Nut, 9/16-18
154	7A115	Manual Valve Detent Lever (Serviced in Kits Only)
155	—	Shift Valve Plate (Not Serviced Separately)
156	7326	Gear Selector Valve Rod
157	7D075	Downshift Lever Stop (Part of 7A100)
158	—	Throttle Pressure Booster Valve Plate (Not Serviced Separately)
159	7D227	Throttle Pressure Valve Secondary Spacer
160	—	Upper Control Valve Body (Part of 7A100)
161	—	Main Control Valve Body Reinforcement Plate (Part of 7A100)
162	—	Main Control Valve Body Separator Plate Reinforcement (Part of 7A100)
164	7E387	Main Control Pump Inlet Screen
165	—	Valve Body Separating Plate (Part of 7A100)
166	7D100	Valve Body Separating Plate Gasket
167	—	Lower Control Valve Body (Part of 7A100)
168	7E062	Fluid Pan Screen Gasket
169	7A098	Fluid Screen
170	357050-S	Bolt, 10-24 x 1-5/8 Inch Hex-Head (2 Req'd)
171	7A102	Lower Main Control Valve Body Suction Tube
172	337051-S	Bolt, 10-24 x 1-1/4 Inch Hex-Head (6 Req'd)
173	7A100	Main Control Valve Body
174	7A191	Fluid Pan Gasket
175	7A194	Transmission Fluid Pan (Shallow — 4x2) (Deep — 4x4)
176	378782-S	Bolt
177	87031	Vacuum Diaphragm O-Ring

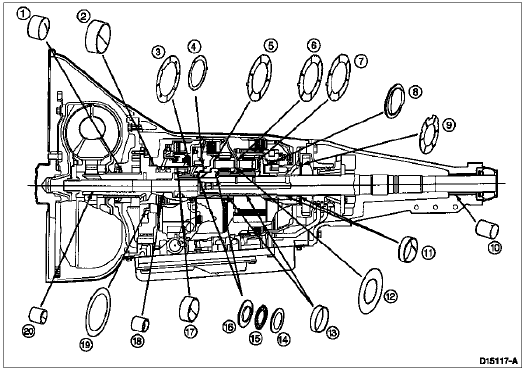

Bushings, Bearing and Thrust Washer Locator

Item	Part Number	Description
1	7B258	Front Pump Bushing
2	7D048	Intermediate Brake Drum Front Bushing (Large) (Part of 7D044)
3	7C096	No. 2 Intermediate Brake Drum Thrust Washer
4	7D090	No. 4 Forward Clutch Hub Thrust Washer
5	7A166	No. 5 Planet Carrier Thrust Washer
6	7A166	No. 7 Planet Carrier Thrust Washer (4 Tabs — 7.5L Only) 4 Pinion
7	7A166	No. 8 Planet Carrier Thrust Washer (4 Tabs — 7.5L Only) 4 Pinion
8	7D422	No. 9 Output Shaft Hub Thrust Bearing
9	7B368	No. 10 Output Shaft Thrust Washer
10	7A034	Extension Housing Bushing
11	7025	Cage Bushing Front/Rear
12	7D066	Input Shell Thrust Washer
13	7D065	Sun Gear Bushing Front/Rear (Part of 7D063)
14	7D235	Bearing Rear Race
15	7D234	Thrust Bearing
16	7D236	Bearing Front Race
17	7D046	Intermediate Brake Drum Rear Bushing (Small) (Part of 7D044)
18	7D018	Front Pump Support Rear Bushing (Part of 7A103)
19	7D014	No. 1 Front Pump Support Thrust Washer
20	7B261	Front Pump Support Front Bushing (Part of 7A103)

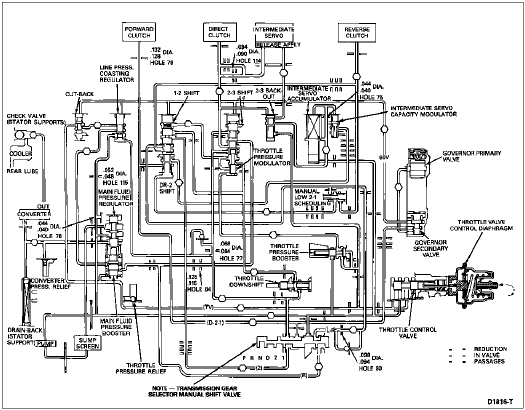

Hydraulic Control System
