Transmission, Disassembled Views

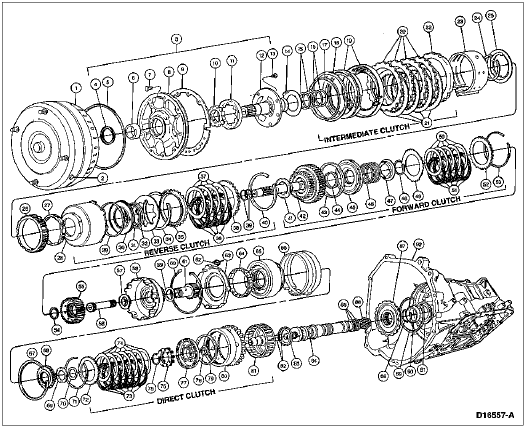

4R70W Transmission, Disassembled View

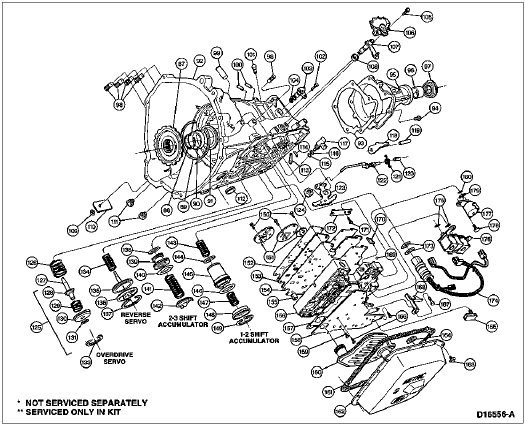

4R70W Transmission, Disassembled View (Continued)

Item	Part Number	Description
1	7902	Converter Assembly
2	87650-S2	Plug — Converter Drain, 1/8-27 Dryseal
3	7A103	Pump Assembly — Front Pump
4	7A248	Seal Assembly — Front Pump
5	7A248	Seal — Front Pump
6	7B258	Bushing — Front Pump
7	N605789-S100	Bolt, M8-1.25 x 35 Hex-Head (7 — Att. 7A103 to 7005)
8	7A106	Body Assembly — Front Pump* Not serviced separately.
9	7A136	Gasket — Front Pump
10	7H169	Gear — Pump Inner Gerotor*
11	7H169	Gear — Pump Outer Gerotor*
12	7A108	Support Assembly — Front Pump
13	N605787-S	Bolt, M8-1.25 x 25 Hex Flange Head (5 — Att. 7A108 to 7A103)
14	7D014	Washer — Front Pump Support Thrust, Select Fit No. 1
15	7D020	Seal — Reverse Clutch Cylinder (2 Req'd)
16	7D019	Seal — Forward Clutch Cylinder (2 Req'd)
17	7F225	Seal — Intermediate Clutch Piston — Inner
18	7F224	Seal — Intermediate Clutch Piston — Outer
19	7E005	Piston Kit — Intermediate Clutch** Serviced only in kit.
20	7B442	Plate — Intermediate Clutch External Spline (Steel), Select Fit
21	7B164	Plate Assembly — Intermediate Clutch Internal Spline (Friction)
22	7B066	Plate — Intermediate Clutch Pressure
23	7F196	Band Assembly — Overdrive
24	391267-S	Ring, 3-21/64 Retaining Type SU Extension (Retain 7F262 to 7F215)
25	7D191	Retainer — Intermediate One-Way Clutch
26	7F221	Hub — Intermediate Clutch
27	7A089	Clutch Assembly — Intermediate One-Way
28	7D044	Drum Assembly — Reverse Clutch
29	7D403	Seal — Reverse Clutch Piston — Outer
30	7D402	Piston Assembly — Reverse Clutch
31	7D404	Seal — Reverse Clutch Piston — Inner
32	7D256	Ring — Reverse Clutch Piston Pressure
33	7B070	Spring — Reverse Clutch Piston Return
34	7A577	Spring — Reverse Clutch Piston Spring
35	7B066	Plate — Reverse Clutch Front Pressure
36	7B164	Plate — Reverse Clutch Internal Spline (Friction)
37	7B442	Plate — Reverse Clutch External Spline (Steel)
38	7B066	Plate — Reverse Clutch Rear Pressure
39	7B497	Seal — Input Shaft (2 Req'd)
40	7D483	Retainer — Reverse Clutch Pressure Plate, Select Fit
41	7A166	Bearing and Race Assembly — Forward Clutch No. 2
42	7F207	Cylinder and Input Shaft Assembly — Forward Clutch
43	7A548	Seal — Forward Clutch Piston — Outer
44	7C099	Seal — Forward Clutch Piston — Inner
45	7A262	Piston — Forward Clutch
46	7A480	Spring — Forward Clutch Piston Return
47	7A527	Retainer Return Spring — Forward Clutch
48	388099-S	Snap Ring — Retaining, 1-59/64 (Retain 7A529 in 7F207)
49	7E085	Spring — Rear Clutch Pressure Plate
50	7B442	Plate — Forward Clutch External Spline (Steel)
51	7B164	Plate — Forward Clutch Internal Spline (Friction)
52	7B066	Plate — Forward Clutch Pressure
53	7D483	Snap Ring — Retaining (Select Fit)
54	7F231	Bearing and Race Assembly — Forward Clutch — Front No. 3
55	7B067	Hub — Forward Clutch
56	7F351	Shaft — Intermediate Stub
57	7C096	Bearing and Race Assembly — Forward Clutch Hub No. 4
58	7A019	Gear Assembly — Reverse Clutch Sun
59	7F244	Bearing and Race Assembly — Forward Clutch Sun Gear No. 5
60	388501-S	Retaining Ring — Center Support, 7-7/92
61	7A399	Gear Assembly — Forward Clutch Sun
62	7F277	Spring — Case to Planet Support
63	7A130	Support Assembly — Planetary Gear
64	7A089	One-Way Clutch Cage Spring and Roller Assembly — Planetary
65	7A398	Planetary Assembly
66	7D095	Band Assembly — Reverse
67	377437-S	Retaining Ring, .058 Thick (Locates Reverse Band During Assembly)
68	7F236	Hub — Direct Clutch
69	7F243	Bearing and Race Assembly — Direct Clutch Inner No. 7
70	7F237	Support — Direct Clutch Inner Bearing
71	7D483	Retaining Ring — Direct Clutch Pressure Plate, Select Fit
72	7B066	Plate — Direct Clutch Pressure
73	7B164	Plate — Direct Clutch Internal Spline (Friction)
74	7B442	Plate — Direct Clutch External Spline (Steel)
75	388104-S	Retaining Ring, 1-19/32 (Retain 7F235 to 7F283)
76	7F235	Retainer and Spring Assembly — Direct Clutch
77	7A262	Piston Assembly — Direct Clutch
78	7C099	Seal — Direct Clutch Piston Inner
79	7A233	Seal — Direct Clutch Piston Outer
80	7A153	Gear — Output Shaft Ring
81	7F283	Cylinder Assembly — Direct Clutch
82	7F274	Seal — Output Shaft Small — Direct Clutch (2 Req'd)
83	7F240	Bearing and Race Assembly — Direct Clutch Outer No. 8
84	7060	Shaft Assembly — Output
85	7F273	Seal — Output to Case Shaft Large (3 Req'd)
86	87054-S94	Seal — O-Ring (Piloted Output Shaft Only)
87	7D164	Hub — Output Shaft
88	97713-S	Snap Ring, 1-13/16 Retaining (Retain 7D164 to 7060)
89	7C122	Snap Ring — Retaining (Retain 7D165 to 7A153)
90	7025	Bushing — Rear Case
91	7F242	Bearing and Race Assembly — Case Rear No. 9
92	7005	Case Assembly
93	7086	Gasket — Extension
94	N803747-S1000	Bolt, M8-1.25 x 30 (6 Req'd Att. 7A039 to 7005)
95	7A039	Extension Assembly
96	7A034	Bushing — Extension Housing
97	7052	Seal Assembly — Extension Housing (Booted)
98	390318-S100	Pipe Plug, 1/8-27 Dryseal Tapered (5 Req'd)
99	7F295	Pin — Overdrive Band Anchor
100	388142-S	Pin — Reverse Band Anchor*
101	7034	Vent Assembly — Case
102	N605771-S2	Bolt, M6-1.0 x 14 Hex Flange Head (Att. OSS Sensor to Case)
103	7H103	Sensor Assembly — Transmission Output Shaft Speed
104	7Z101	Seal, 14.0 x 1.78 O-Ring (2 Req'd)
105	N806933-S100	Bolt and Washer Assembly, M6-1.0 x 25mm (2 Req'd) (Att. 7F293 to 7005)
106	7F293	Sensor — Transmission Range
107	7A256	Lever Assembly — Manual Control (Model Dependent)
108	7B498	Seal Assembly — Manual Control Lever
109	373907-S2	Nut, 1/4 Spring (Retains I.D. Tag to 7000)
110	7B148	Tag — Identification*
111	7D273	Connector Assembly — Fluid Tube
112	7N171	Plug — Converter Housing Access
113	7E242	Screen Assembly — Fluid
114	7B210	Pin — Manual Lever Shaft Retainer
115	7Z383	Seal — 0.426 x 0.070 O-Ring
116	7Z101	Seal — 14.0 x 1.78 O-Ring
117	7G383	Solenoid Valve — Transmission Pressure Control
118	7A441	Pawl — Parking Pawl
119	7D071	Shaft — Parking Pawl
120	7D419	Cup — Park Rod Guide*
121	7D070	Spring — Parking Pawl Return
122	7A232	Rod Assembly — Park Pawl Actuating
123	7A115	Lever Assembly — Manual Valve Detent Lever
124	N800287-S536	Nut, M14 x 1.5 Hex — Intermediate Detent Lever (Att. 7A115 to 7A256)
125	7H188	Piston Assembly — Overdrive Servo (Model Dependent)
126	7F201	Spring — Overdrive Servo Piston (Model Dependent)
127	7F203	Rod — Overdrive Servo Actuating*
128	7H179	Washer — Backup Overdrive Servo Bellville*
129	7G277	Spring — Bellville Overdrive Cushion Spring*
130	7F200	Piston Assembly — Overdrive Servo*
131	97411-S	Ring — Retaining*
133	7384	Ring, 2.85 Retaining Type TVP "H" Internal (Retain 7H186 to 7005)
134	7D031	Spring — Reverse Band Servo Piston
135	7D189	Piston Assembly — Reverse Band Servo
136	7D036	Cover Assembly — Reverse Band Servo Piston
137	388215-S100	Retaining Ring — Internal, 3-13/16
138	7F250	Seal — 2-3 Accumulator Piston — Upper
139	7F251	Piston — 2-3 Shift Accumulator
140	7F249	Seal — 2-3 Accumulator Piston — Lower
141	7F285	Spring — 2-3 Shift Accumulator Piston
142	7B264	Retainer — 2-3 Shift Accumulator Spring
143	7F284	Spring — 1-2 Shift Accumulator (Model Dependent)
144	7F248	Seal — 1-2 Shift Accumulator Piston
145	7F251	Piston — 1-2 Shift Accumulator
146	7F249	Seal — 1-2 Accumulator Piston — Lower
147	7F284	Spring — 1-2 Shift Accumulator
148	7H300	Cover and Seal Assembly 1-2 Accumulator
149	7384	Ring, 2-1/16 Retaining Type HU Internal (Retain 7H300 in 7005)
150	N605517-S1000	Bolt, M6-1.0 x 16 Hex-Head (8 Att. O/D Servo and 2.3 Accumulator Reinforcing Plate to Valve Body)
150	N807178-S1000	Bolt, M6-1.0 x 18 Hex-Head (4 Att. Reverse Servo Reinforcing Plate to Valve Body)
151	7F282	Plate — Valve Body Reinforcing
152	7C155	Gasket — Valve Body Separator — Upper
153	7A008	Plate — Control Valve Body Separator*
154	7D100	Gasket — Valve Body Separating — Lower
155	7H171	Valve — Converter Drainback
156	7A100	Control Assembly — Main
157	7H173	Gasket — Valve Body Cover Plate
158	7C034	Plate — Valve Body Cover*
159	N807178-S1000	Bolt, M6-1.0 x 18 Hex-Head (4 Att. 7C034 to 7A100)*
160	7A098	Filter and Seal Assembly — Fluid
161	7A191	Gasket — Transmission Pan
162	7A194	Pan — Transmission
163	N605785-S1036	Bolt, M8-1.25 x 18 Hex Flange Head (14 Att. Transmission Pan to Case)
164	7L027	Magnet — Ceramic Case*
165	7H141	Sensor — Transmission Fluid Temperature
166	N806381-S1300	Bolt, M8-1.25 x 46 Hex Shoulder Pilot (2 Att. 7C034 to 7A100)
167	N807179-S1000	Bolt, M6-1.0 x 52 Hex Flange Head (12 Att. 7A100 to 7005)
168	7H111	Retainer — Solenoid
169	7E195	Ball, 1/4 Diameter Coast Booster Valve Shuttle (8 Req'd)
170	7H187	Screen — Solenoid Pressure Supply
171	N606022-S1000	Bolt, M6-1.0 x 40 Hex Flange Head (13 Att. 7A100 to 7005)
172	7E332	Spring Assembly — Manual Valve Detent
173	7Z276	Seal, 0.864 x 0.070 O-Ring (2 Req'd)
174	7G276	Bulkhead Assembly — Wiring Connector
175	7Z484	Seal, 6.07 x 1.70 O-Ring (2 Req'd)
176	7G484	Solenoid Valve — Transmission Shift
