Seals, Ring and Gaskets Locator

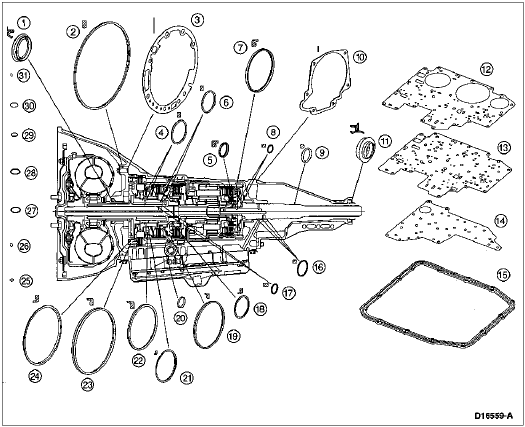

4R70W Seals, Rings and Gaskets Locator

Item	Part Number	Description
1	7A248	Front Pump Seal Assembly
2	7A248	Front Pump Seal
3	7A136	Front Pump Gasket
4	7D020	Reverse Clutch Cylinder Seal (2 Req'd)
5	7F234	Direct Clutch Piston Inner Seal
6	7D019	Forward Clutch Cylinder Seal (2 Req'd)
7	7C000	Direct Clutch Piston Outer Seal
8	7F274	Output Shaft to Direct Clutch Cylinder Seal (2 Req'd)
9	87054-S94	O-Ring Seal
10	7086	Extension Gasket
11	7052	Extension Housing Seal Assembly
12	7C155	Control Valve Body Upper Gasket
13	7D100	Valve Body Separator Plate Lower Gasket
14	7H173	Valve Body Cover Plate Gasket
15	7A191	Transmission Pan to Case Gasket
16	7F273	Output Shaft to Case Seal (3 Req'd)
17	7B497	Input Shaft Seal (2 Req'd)
18	7C099	Forward Clutch Piston Inner Seal
19	7A548	Forward Clutch Piston Outer Seal
20	7B498	Manual Control Lever Seal Assembly
21	7D403	Reverse Clutch Piston Outer Seal
22	7D404	Reverse Clutch Piston Inner Seal
23	7F224	Intermediate Clutch Piston Outer Seal
24	7F225	Intermediate Clutch Piston Inner Seal
25	7Z484	Shift Solenoid Seal (2 Req'd)
26	7Z101	Output Shaft Speed Sensor Seal (2 Req'd)
27	7F249	2-3 Accumulator Piston Lower Seal
28	7F249	1-2 Accumulator Piston Lower Seal
29	7F250	2-3 Accumulator Piston Upper Seal
30	7Z276	Bulkhead Seal (2 Req'd)
31	7Z383	Pressure Control Solenoid Seal
