Section 07-03A: Transmission, Manual, M5OD | 1996 F-Series and Bronco (under 8500 lbs. GVW) with 4.9L and 5.0L Engines Workshop Manual |

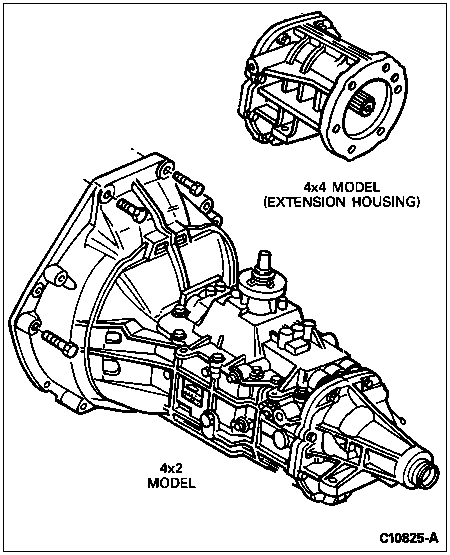

The M5OD is a top shift, fully synchronized, five-speed manual transmission (7003), equipped with an overdrive fifth gear ratio. All gear changes including reverse are accomplished with synchronizer sleeves.
The case (7005), case cover (7222), and extension housing (7A039) are constructed of aluminum alloy. Steel bearing race inserts provide durability in appropriate areas.
The extension housing contains a bronze alloy bushing. This bushing cannot be serviced. The extension housing must be replaced as a unit if the bushing requires service (4x2 vehicles only).
