Section 07-03A: Transmission, Manual, M5OD
1996 F-Series and Bronco (under 8500 lbs. GVW) with 4.9L and 5.0L Engines Workshop Manual
DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES

Input Shaft and Bearing

SPECIAL SERVICE TOOL(S) REQUIRED
DescriptionTool Number
Pinion Bearing Cone RemoverT71P-4621-B
Bearing Cone ReplacerT88T-7025-B

Disassembly

  1. Remove and discard front bearing oil scoop ring.

  1.  CAUTION: Use of essential tools may cause damage to bearings being removed.

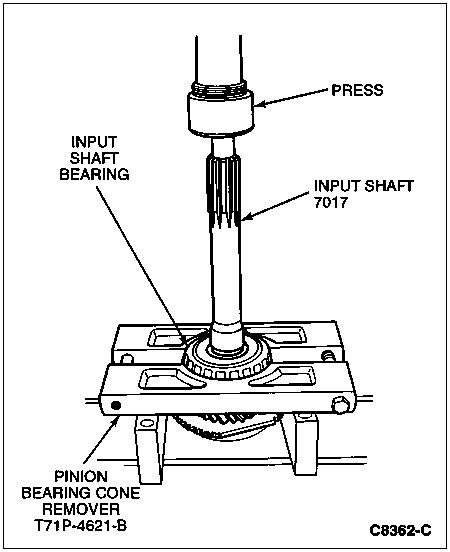

    Press tapered roller bearing frominput shaft (7017) using Pinion Bearing Cone Remover T71P-4621-B and arbor press.

Assembly

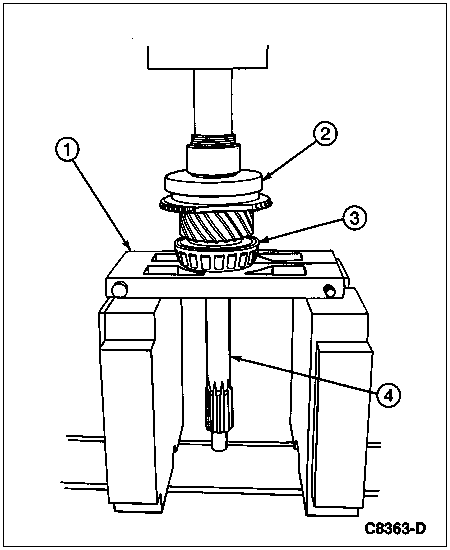

  1. Install tapered roller bearing onto input shaft using a press and Bearing Cone Replacer T88T-7025-B and Pinion Bearing Cone Remover T71P-4621-B as a press plate.

    ItemPart NumberDescription
    1T71P-4621-BPinion Bearing Cone Remover
    2T88T-7025-BBearing Cone Replacer
    37025Bearing
    47017Input Shaft

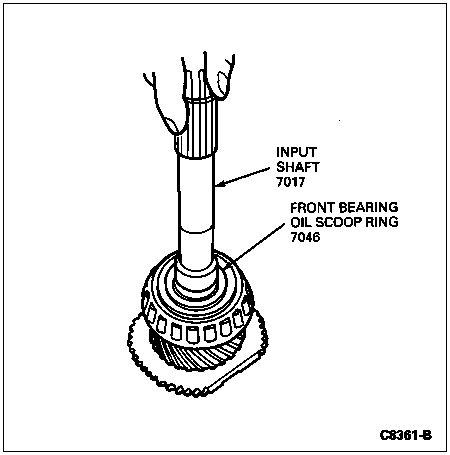

  1. Install front bearing oil scoop ring onto input shaft. (Manually rotate clockwise to make sure that input shaft oil holes properly engage front bearing oil scoop ring. A click should be heard as scoop ring notches align with input shaft oil holes.)
