NOTE: For reference during assembly, observe that reference arrow in middle of bearing retainer points upward. Observe that flanged side faces inward.

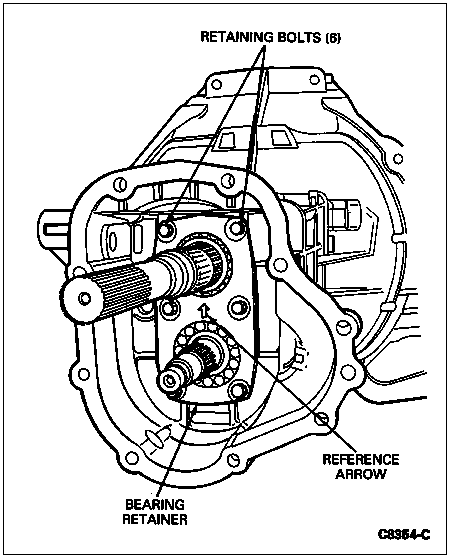

Using a 12mm socket, remove six retaining bolts. Remove bearing retainer.
Section 07-03A: Transmission, Manual, M5OD | 1996 F-Series and Bronco (under 8500 lbs. GVW) with 4.9L and 5.0L Engines Workshop Manual |
Disassembly
NOTE: For reference during assembly, observe that reference arrow in middle of bearing retainer points upward. Observe that flanged side faces inward.
Using a 12mm socket, remove six retaining bolts. Remove bearing retainer.
Assembly
NOTE: Make sure all retaining bolt heads are marked with an "8."
Position bearing retainer to case with reference arrow pointing upward. Install and tighten retaining bolts to 18-26 Nm (14-19 lb-ft).
