Section 07-03A: Transmission, Manual, M5OD
1996 F-Series and Bronco (under 8500 lbs. GVW) with 4.9L and 5.0L Engines Workshop Manual
DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES

Bearing, Countershaft

SPECIAL SERVICE TOOL(S) REQUIRED
DescriptionTool Number
Mainshaft Locknut Staking ToolT77J-7025-F

  1. Lock transmission (7003) into first and third gears.

  1.  CAUTION: Staked areas of locknuts must be fully released or damage to shaft threads will result.

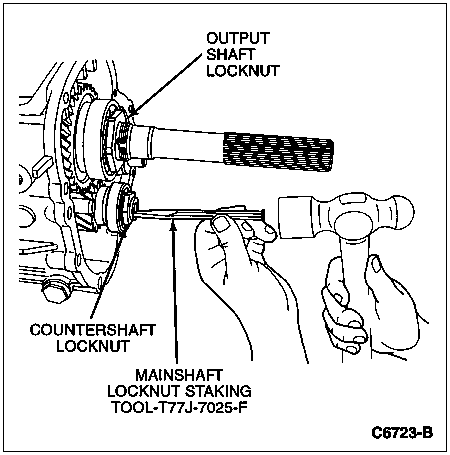

    Using Mainshaft Locknut Staking Tool T77J-7025-F or equivalent, release the staked areas securing output shaft and countershaft locknuts.

  1. Using a 32mm socket, remove and discard the locknut, then remove the countershaft rear bearing and thrust washer.
