Section 07-03A: Transmission, Manual, M5OD
1996 F-Series and Bronco (under 8500 lbs. GVW) with 4.9L and 5.0L Engines Workshop Manual
INSTALLATION

Extension Housing

SPECIAL SERVICE TOOL(S) REQUIRED
DescriptionTool Number
Extension Housing Seal ReplacerT61L-7657-A

  1. Position extension housing (7A039) to case and install retaining bolts. Tighten bolts to 32-46 Nm (24-34 lb-ft).

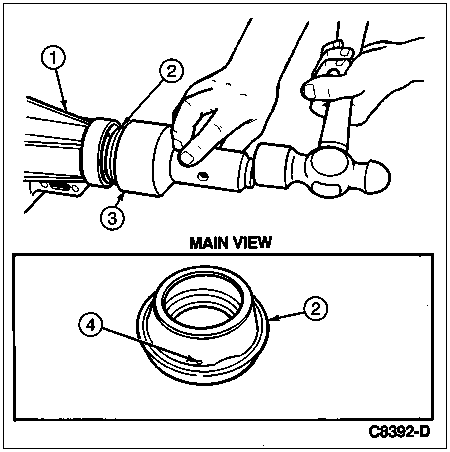

  1. If removed, install input shaft (7017) and extension housing seal using Extension Housing Seal Replacer T61L-7657-A. Make sure that oil seal drain hole faces downward.

    ItemPart NumberDescription
    17A039Extension Housing
    27052Input Shaft and Extension Housing Seal
    3T61L-7657-AExtension Housing Seal Replacer
    4—Drain Hole to Face Forward (Part of 7025)
