Section 07-03B: Transmission, Manual, Model S5-47 ZF
1996 F-Series Vehicles Over 8500 lbs. GVW Workshop Manual
REMOVAL

Rear Seal, 4x2 Transmissions (Except F-Super Duty)

SPECIAL SERVICE TOOL(S) REQUIRED
DescriptionTool Number
Companion Flange Holding ToolT78P-4851-A
Locknut SocketT87T-7025-AH
Rear Seal RemoverT87T-7025-CH
TOD Forcing ScrewT84T-7025-B

Removal

  1. Disconnect the driveshaft (4602) from the output flange. Refer to Section 05-01.

  1. Attach Companion Flange Holding Tool T78P-4851-A to the transmission output flange with four hex bolts.

  1. Loosen the hex nut that holds the output flange to the mainshaft with Locknut Socket T87T-7025-AH. Remove the flange holding tool after loosening the nut.

  1. Remove the output flange from the mainshaft.

  1. Insert Rear Seal Remover T87T-7025-CH over output end of mainshaft and tighten into oil seal (7052).

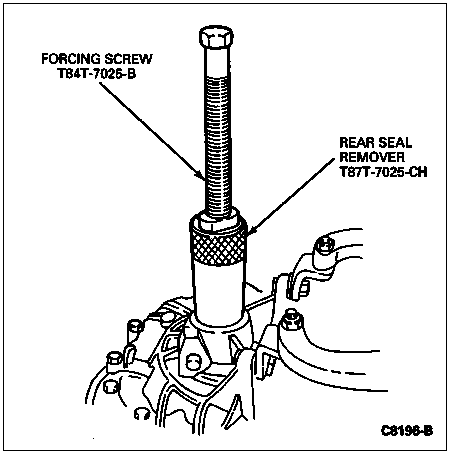

  1. Assemble TOD Forcing Screw T84T-7025-B into seal remover. Turn forcing screw while holding seal remover to pull oil seal.
