Using Impact Slide Hammer T50T-100-A, and Internal Puller D80L-943-A or equivalent, remove the outer race of output shaft rear bearing (7R205) from the extension housing.
Section 07-03B: Transmission, Manual, Model S5-47 ZF | 1996 F-Series Vehicles Over 8500 lbs. GVW Workshop Manual |
Removal and installation is the same as for the 4x2 with the additional steps of removing and installing the transfer case. Refer to the appropriate section in this manual.
On F-Super Duty series vehicles, remove the transmission-mounted parking brake as described in Section 06-05 in the Body, Chassis manual.
| Description | Tool Number |
|---|---|
| Impact Slide Hammer | T50T-100-A |
NOTE: Refer to Transmission in the Disassembly portion of this section for removal procedure.
If required, drive out the two dowel pins from extension housing (7A039).

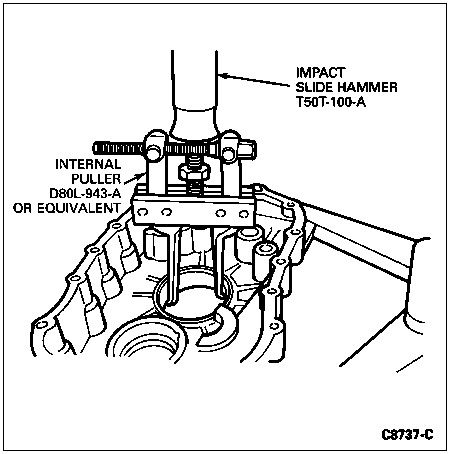

Using Impact Slide Hammer T50T-100-A, and Internal Puller D80L-943-A or equivalent, remove the outer race of output shaft rear bearing (7R205) from the extension housing.

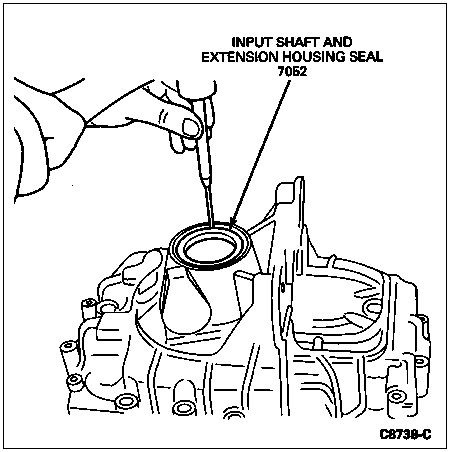

Using a suitable drift, drive the oil seal (7052) out of the extension housing and discard.

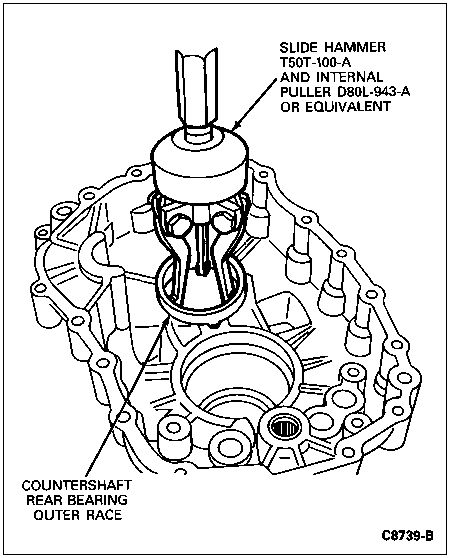

Using Impact Slide Hammer T50T-100-A and Internal Puller D80L-943-A or equivalent, remove the countershaft rear bearing outer race from the extension housing.

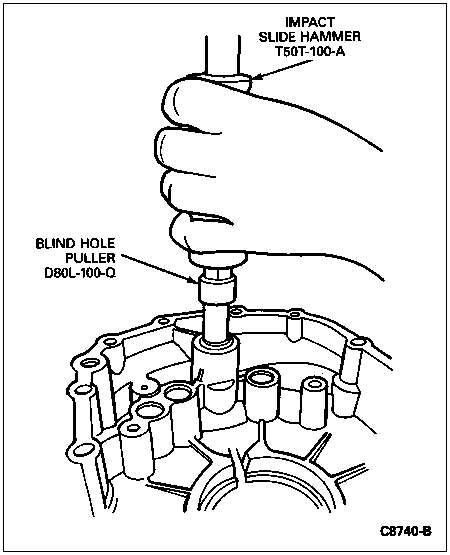

If required, remove the central shift rail bearing from the extension housing. Use Blind Hole Puller D80L-100-Q or equivalent and Impact Slide Hammer T50T-100-A to remove the bearing.
