Insert the shift lever boot in its upright position in the cover of shift lever.
Section 07-03B: Transmission, Manual, Model S5-47 ZF | 1996 F-Series Vehicles Over 8500 lbs. GVW Workshop Manual |

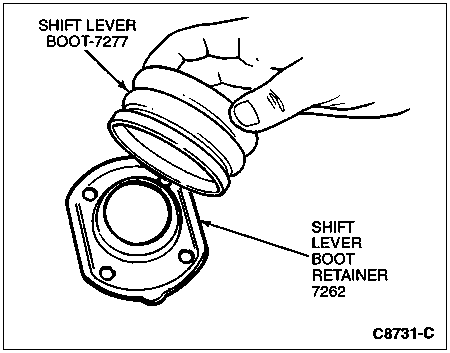

Insert the shift lever boot in its upright position in the cover of shift lever.
Using a screwdriver, install the snap ring inside the shift lever boot so that the shift lever boot and ring will be secured in the groove in the shift lever boot retainer.
Slide the shift lever boot and cover as an assembly on past the shift lever.
Place the two guide pieces on the lugs on the cardan joint. The slotted ends of the guide pieces should be located near the cover pointing inwards toward the shift lever.
