Section 07-03B: Transmission, Manual, Model S5-47 ZF | 1996 F-Series Vehicles Over 8500 lbs. GVW Workshop Manual |

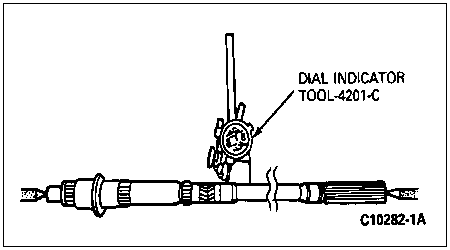

Check output shaft for runout by mounting the shaft between V-blocks and applying Dial Indicator with Bracketry TOOL-4201-C to several places along shaft. The standard reading of the indicator for runout should be less than 0.05mm (0.002 inch). If runout exceeds 0.05mm (0.002 inch), replace shaft.
