Section 07-05: Transmission, Automatic, External Controls
1996 F-150, F-250, F-350 F-Super Duty and Bronco Workshop Manual
ADJUSTMENTS

Shift Indicator Cable

  1. Remove the four screws from the lower steering column shroud. Remove the lower steering column shroud.

  1. Rotate gearshift lever (7210) clockwise until it bottoms out in first gear.

  1. Rotate gearshift lever counterclockwise three detents (overdrive position).

  1. Hang a three-pound weight on the gearshift lever.

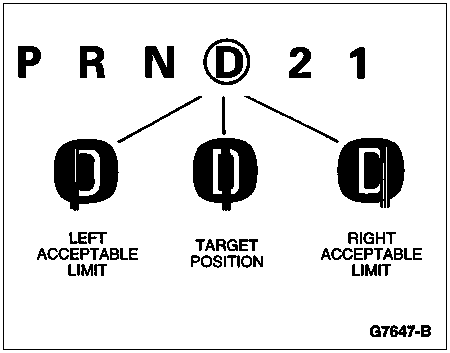

  1. Center pointer in the middle of D if equipped with C6 transmission, or (D) if equipped with E4OD transmission, by rotating the thumbwheel located on right-hand side of steering column actuator housing.



    E4OD Transmission Selector






    C6 Transmission Selector
