Section 07-14C: Clutch Pedal Position (CPP) Switch
1996 F-150, F-250, F-350 and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Clutch Pedal Position (CPP) Switch

Removal

  1. Disconnect the wiring harness from clutch pedal position switch (CPP) (11A152).

  1. Pull down on orientation clip to separate from switch tab.

  1. Rotate clutch pedal position switch one-half turn to expose plastic retainer.

  1. Push switch tabs together and slide retainer rearward and separate from clutch pedal position switch.

  1. Remove clutch pedal position switch from clutch master cylinder (7A543) push rod.

Installation

  1. Reverse the removal procedure.

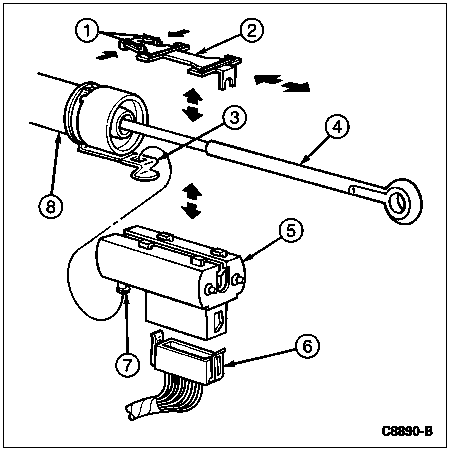

ItemPart NumberDescription
1Switch Tab (Part of 664D0 Clutch Pedal Position Switch)
2Plastic Retainer
(Part of 664D0 Clutch
Pedal Position Switch)
3Orientation Clip
(Part of 7A543 Clutch
Master Cylinder)
4Push Rod (Part of 7A543 Clutch Master Cylinder)
511A152Clutch Pedal Position Switch
6Wiring Harness (Part of 14401 Main Wiring)
7Pin (Part of 664D0 Clutch Pedal Position Switch)
87A543Clutch Master Cylinder
