Section 08-00: Clutch System, Service
1996 F-150, F-250, F-350, F-Super Duty Chassis Cab and Bronco Equipped with Manual Transmission Workshop Manual
DIAGNOSIS AND TESTING

Component Tests

Clutch Pedal Position Switch Operation

  1. To check the clutch pedal position switch (CPP) (11A152) for proper starting function, disconnect the wiring harness from the clutch pedal position switch.

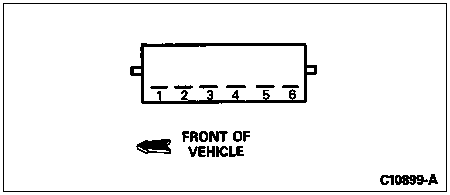

  1. Using an ohmmeter, probe pins 1 and 2 for continuity. The indicator should read OPEN while moving the pedal from a full up position to within approximately 25mm (1 inch) of full travel. Measurement beyond this point should be a CLOSED reading (0 ohms).
