Section 10-01B: Fuel Tank, Filters, Tubes and Fuel Pump, Diesel Engine
1996 F-Series and F-Super Duty Vehicles Equipped with Diesel Engines Workshop Manual
REMOVAL AND INSTALLATION

Selector Valve, Auxiliary Fuel Tank

Removal

  1. Disconnect battery ground cables (14301) and remove the fuel tubes from the valve as outlined.

  1. Remove electrical connector.

  1. Remove the two bolts mounting the selector valve.



Installation

  1. Follow removal procedures in reverse order.

  1. Tighten selector valve mounting bolts to 12-16 Nm (9-12 lb-ft).

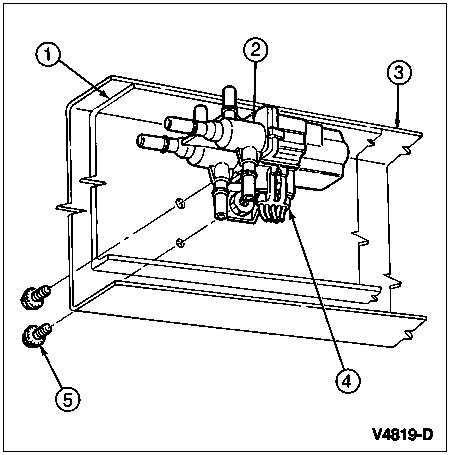

Fuel Tank Selector Valve, Typical





ItemPart NumberDescription
1—Frame Doubler (F-350 Chassis Cab Only)
(Part of 5005)
29F271Six-Port Fuel Tank Selector Valve
35005Frame
4—Electrical Connector (Part of 14405 Wiring Assembly)
5N605905Bolt
