Section 11-02B: Steering Gear, Power, Ford | 1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual |
NOTE: The only service that can be performed on the control valve assembly is the replacement of the four Teflon® seals on the valve sleeve and replacement of the control valve housing.
| Description | Tool Number |
|---|---|
| Puller | T58L-101-B |
| Impact Slide Hammer | T59L-100-B |
| Bench Mounted Holding Fixture | T57L-500-B |
| Input Shaft Bearing/Seal Tools | T65P-3524-A1, A2, A3 |
| Brass Tube Seat Remover | T74P-3504-L |
| Brass Tube Seat Replacer | T74P-3504-M |
Disassembly
With worm shaft removed, remove the dust seal from the valve housing using Puller T58L-101-B and Impact Slide Hammer T59L-100-B. Discard the seal.
Remove the snap ring from the valve housing.

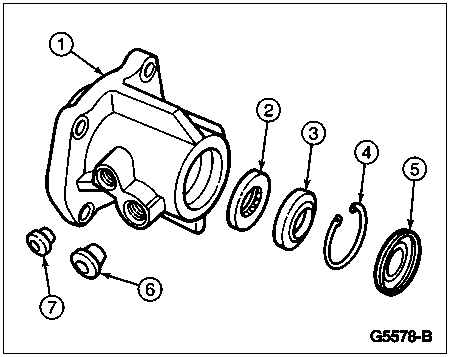

| Item | Part Number | Description |
|---|---|---|
| 1 | — | Power Steering Control Valve Housing (Part of 3504) |
| 2 | — | Bearing (Part of 3504) |
| 3 | — | Oil Seal (Part of 3504) |
| 4 | — | Snap Ring (Part of 3504) |
| 5 | 3D527 | Dust Seal |
| 6 | — | Outlet Tube Seat (Part of 3504) |
| 7 | — | Inlet Tube Seat (Part of 3504) |
Turn Bench Mounted Holding Fixture T57L-500-B to invert valve housing.

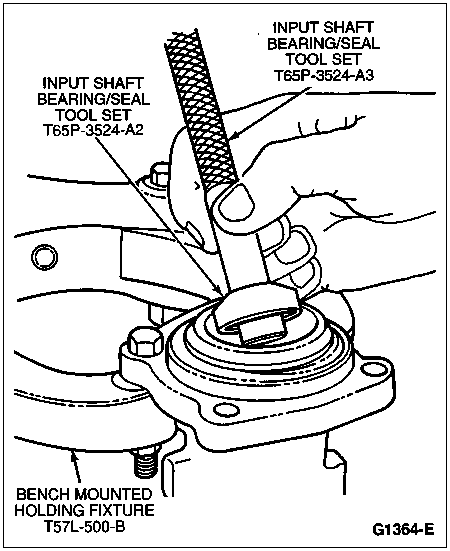

Insert Input Shaft Bearing/Seal Tools T65P-3524-A2 and T65P-3524-A3 in the valve housing opposite the oil seal end, and gently tap the power steering gear input shaft bearing (3D525) and seal out of the housing. Discard the seal. Do not damage the housing when inserting and removing the tools.
Remove the fluid inlet and outlet tube seats with Brass Tube Seat Remover T74P-3504-L if they are damaged.
Assembly
Coat the fluid inlet and outlet tube seats with petroleum jelly or equivalent. Install seats in the housing with a Brass Tube Seat Replacer T74P-3504-M.
Coat the bearing and seal surface of the steering gear housing (3548) with petroleum jelly or equivalent.

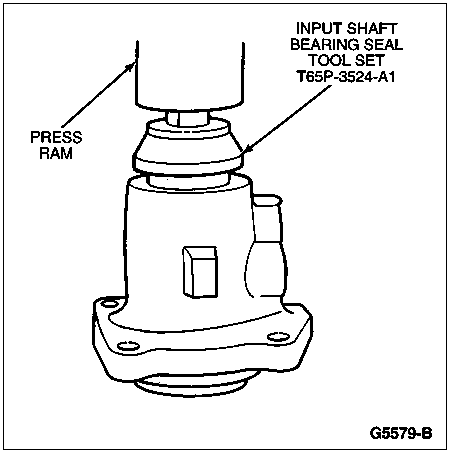

Install the input shaft bearing with the metal side covering the rollers facing outward. Seat the bearing in the valve housing using T65P-3524-A1. Be sure the bearing rotates freely.
Dip a new oil seal in gear lubricant, Premium Power Steering Fluid E6AZ-19582-AA or equivalent meeting Ford specification ESW-M2C33-F and place it in the housing with the metal side facing outward. Drive the seal into the steering gear housing until the outer edge does not quite clear the snap ring groove.

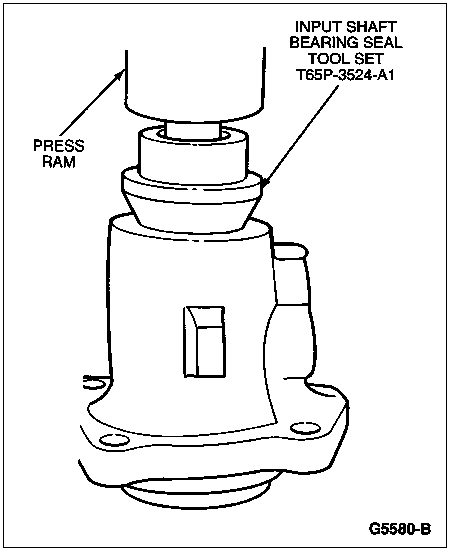

Place the snap ring in the housing and drive on the ring using T65P-3524-A1 until the snap ring seats in its groove.
Place the dust seal in the housing with the dished side (rubber side) facing out. Drive the dust seal into place using T65P-3524-A1. When properly installed, the seal will be located behind the undercut in the power steering gear input shaft and control (3D517).
Apply a generous amount of Ford Multi-Purpose Grease D0AZ-19584-AA or equivalent meeting Ford specification ESB-M1C93-A to the area between the two seals.
