Evaporator Case and Heater Plenum Chamber Case
Section 12-03A: Air Conditioning System, Manual A/C-Heater | 1996 F-150, F-250, F-350, F-Super Duty and Bronco, F-Super Duty Motorhome Chassis Workshop Manual |
The A/C evaporator housing (19850) is attached to the engine side of the dash panel.
The A/C evaporator case (19897) is a two-piece molded construction, one piece of which forms a cover over the A/C evaporator core (19860). A bolt on the A/C vacuum reservoir tank and bracket (19A566) is part of the cover housing. This A/C vacuum reservoir tank and bracket and the vacuum control motor (18A318), which operates the outside/recirc. air door, are linked through an A/C vacuum check valve (19A563) to a hose that supplies engine vacuum.

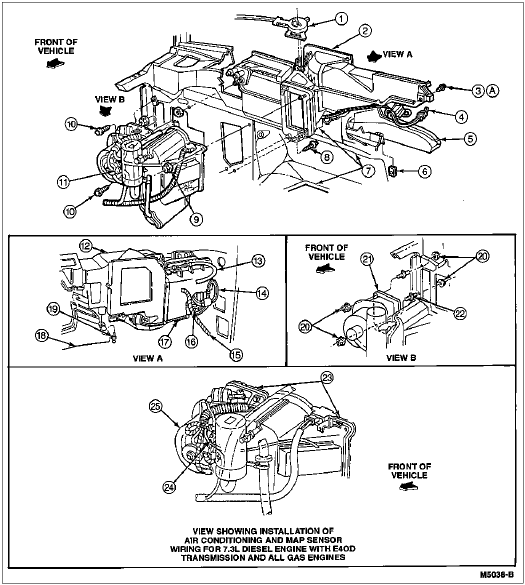

Evaporator Case and Heater Plenum Chamber Case
| Item | Part Number | Description |
|---|---|---|
| 1 | 19988 | A/C Temperature Cable |
| 2 | 18471 | Heater Air Plenum Chamber |
| 3 | 56950-S2 | Screw |
| 4 | 18C581 | A/C Plenum Vacuum Harness |
| 5 | 18C433 | Heater Outlet Floor Duct |
| 6 | 45261-S2 | J-Nut |
| 7 | 01610 | Dash Panel |
| 8 | 56956-S2 | Screw |
| 9 | N801969-S2 | Nut |
| 10 | 56956-S2 | Hex Screw and Washer Assembly |
| 11 | — | Locator (Part of 14401) |
| 12 | 18471 | Heater Air Plenum Chamber |
| 13 | — | Attaches to (Part of 18471) NAAO End Item |
| 14 | — | Wiring Retainer (Part of 18456) |
| 15 | — | Locator (Part of 14401) |
| 16 | — | Wiring (Part of 18456) |
| 17 | — | Control Vacuum Harness (Part of 19C827) |
| 18 | 18C433 | Heater Outlet Floor Duct |
| 19 | N803946-S | Rivet |
| 20 | N612906-S2 | Nut |
| 21 | 18A484 | Heater Plenum Chamber Case |
| 22 | N803912-S2 | Stud |
| 23 | — | Retention Tab (Part of 19D674) |
| 24 | N801696-S2 | Nut |
| 25 | 18527 | Blower Motor |
| A | — | Tighten to 2.5-3.0 Nm (22-27 Lb-In) |
