Section 13-07: Compass/Outside Temperature Display | 1996 Eddie Bauer Bronco Workshop Manual |

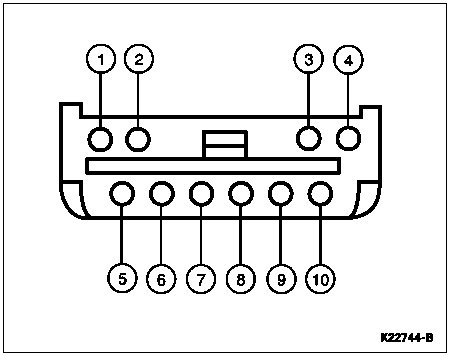

| Pin Number | Circuit | Circuit Function |
|---|---|---|
| 1 | 767 (LB/O) | Ambient Temperature Sensor Ground |
| 2 | 233 (DB/Y) | Ambient Temperature Sensor Feed |
| 3 | 19 (LB/R) | Instrument Illumination |
| 4 | — | Not Used |
| 5 | 53 (BK/LB) | Courtesy Lamps |
| 6 | 54 (LG/Y) | Battery Saver Input |
| 7 | 679 (GY/BK) | Vehicle Speed Input |
| 8 | 296 (W/P) | Ignition (Hot in RUN) |
| 9 | 57 (BK) | Ground Circuit |
| 10 | — | Not Used |
