Section 15-00: Audio Systems, Service
1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual
DIAGNOSIS AND TESTING

Component Tests




Radio Antenna

Refer to the following illustration for radio antenna tests — resistance checks.

Resistance Checks





ItemPart NumberDescription
1—Must Be Less Than 5.0 Ohms on X1 or Low Setting
2—In-Line Connector (Located Above Glove Box)
3—Must Be Infinity on X1000 Setting or Highest Range Available

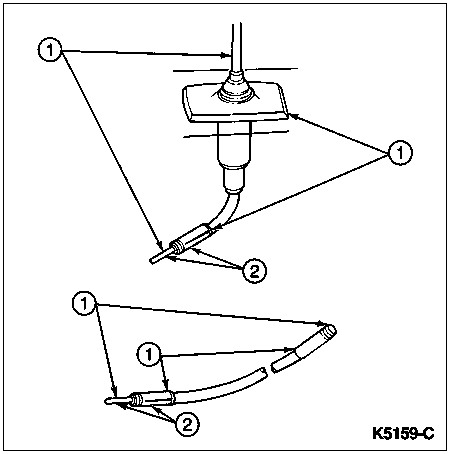

Resistance Checks, Cable, Detachable Antenna and Mast










Resistance Check, Antenna with Extension Cable





ItemPart NumberDescription
1—Must Be Less Than 5.0 Ohms on X1 or Low Setting
2—Must Be at Infinity on X1000 Setting or Highest Range Available
