Section 17-01: Lighting, Exterior
1996 F-150, F-250, F-350, F-Super Duty Motorhome and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Lamp Switch, Backup, 5-Speed Manual Overdrive Transmission

Removal

  1. NOTE: The backup lamp switch is mounted on the driver's side of the transmission assembly. It is non-adjustable.

    Place the transmission selector lever in any position other than reverse.

  1. Disconnect the backup lamp switch to rear lamp feed wire (15525) from transmission.

  1. Remove the switch from the transmission assembly.



Installation

  1. Follow removal procedures in reverse order.

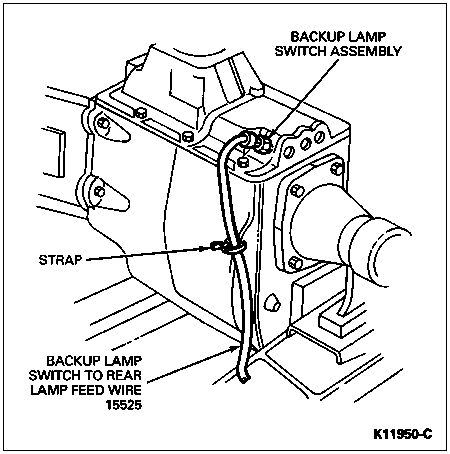

    Backup Lamp Switch, S5-47 ZF Transmission






    Backup Lamp Switch Installed F-150, F-250, F-350 LD
