Section 17-01: Lighting, Exterior
1996 F-150, F-250, F-350, F-Super Duty Motorhome and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Lamps, Parking, Rear Lamp, F-150, F-250, F-350 Styleside Pickup, Bronco




Lamp Assembly

Removal

  1. Remove the screws retaining lamp lens assembly to the vehicle. Pull lamp lens away from vehicle.

  1. Turn the socket with the burned out or broken miniature bulb (13465) counterclockwise out of housing.

  1. Remove miniature bulb from the socket by firmly grasping the miniature bulb and pulling straight out.

Installation

  1. Replace miniature bulb by pushing socket until a snap is heard.

  1. Install socket into lamp and turn clockwise until it locks.

  1. NOTE: If lamp body or lens is damaged, replace entire lamp assembly. Lens and body are not serviced separately.

    Install lamp lens and retaining screws to vehicle.

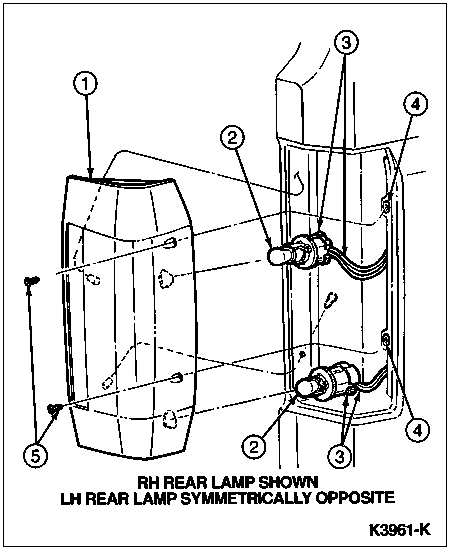

    Lamps, Parking, Rear Lamp, F-150, F-250, F-350 Styleside and Bronco





    ItemPart NumberDescription
    113404Rear Lamp (RH)
    213465Miniature Bulb (2 Req'd)
    313A409Wiring Assembly
    4383356Nut (4 Req'd)
    556000Screw (4 Req'd)


Exterior Lamp Bulb Socket

Removal

  1. To remove rear lamp socket, follow Lamps, Parking, Rear Lamp removal procedure in this section.

  1. To remove the socket, turn the socket then pull away from the lamp lens assembly.

Installation

  1. Follow removal procedures in reverse order.
