Section 17-01: Lighting, Exterior
1996 F-150, F-250, F-350, F-Super Duty Motorhome and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Lamps, Parking, Rear Lamp, F-150, F-250, F-350 4x2 and F-Super Duty Chassis Cab



Lamp Assembly

Removal

  1. To replace the rear lamp (13404), remove the two nuts from the mounting studs.

  1. Disconnect the two connectors (red-black stripe wire and wire with green insulator) inside the frame side rail.

  1. Unhook the wires from the retaining clip and pull the wires out.

Installation

  1. Insert the studs of the replacement lamp body into the holes of the lamp mounting bracket.

  1. Tighten the stud nuts to 16-27 Nm (12-20 lb-ft).

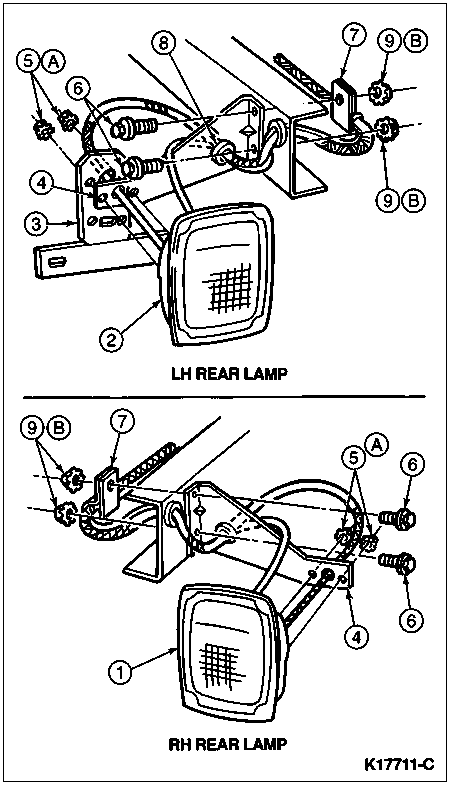

Lamps, Parking, Rear Lamp, F-150, F-250, F-350 4x2 and F-Super Duty Chassis Cab





ItemPart NumberDescription
113404Rear Lamp (RH)
213405Rear Lamp (LH)
313406Rear License Plate Bracket
413406Rear License Plate Bracket
534659Nut and Washer (4 Req'd)
655633Bolt (4 Req'd)
7353473Clip (2 Req'd)
8N805391Grommet (4 Req'd)
934661Nut and Washer (4 Req'd)
A—Tighten to 4-9 Nm
(3-6 Lb-Ft)
B—Tighten to 16-27 Nm
(12-20 Lb-Ft)


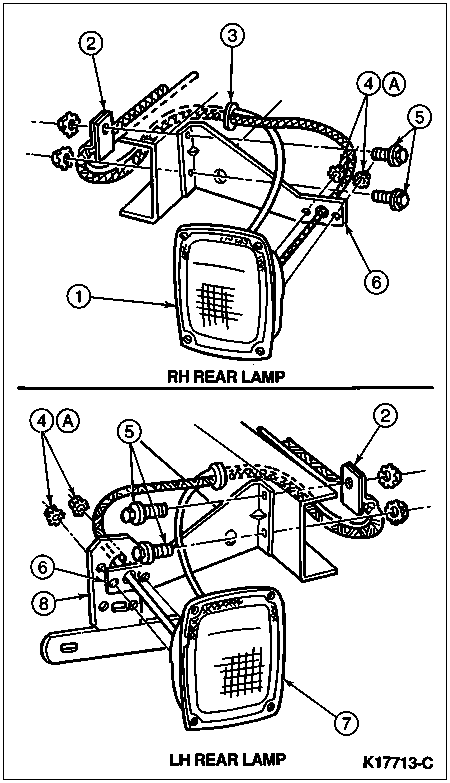

Lamps, Parking, Rear Lamp, F-250 4x4 Chassis Cab





ItemPart NumberDescription
113404Rear Lamp (RH)
2353473Clip (2 Req'd)
3N805391Grommet (4 Req'd)
434659Nut and Washer (4 Req'd)
555653Bolt (4 Req'd)
613406Rear License Plate Bracket
713405Rear Lamp (LH)
813406Rear License Plate Bracket
A—Tighten to 4-9 Nm
(3-7 Lb-Ft)

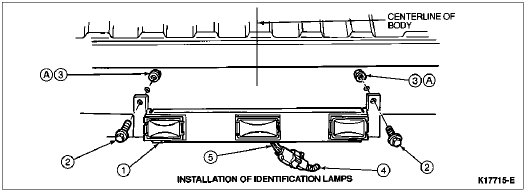

Rear Identification Lamps, F-250, F-350 with Dual Rear Wheels





ItemPart NumberDescription
115425Marker Lamp and Bracket
2N605892Bolt (2 Req'd)
3N621906Nut (2 Req'd)
413A409Wiring Assembly
515A411Wiring Assembly
A—Tighten to 9-14 Nm
(80-124 Lb-In)


Bulb

The miniature bulb (13465) in the rear lamp can be replaced by removing the lens retaining screws and pulling lens away from vehicle.
