Section 17-01: Lighting, Exterior
1996 F-150, F-250, F-350, F-Super Duty Motorhome and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Lamp Housing

Removal

  1. Using a Phillips screwdriver, remove the two lamp housing retaining screws.

  1. Pull the lamp housing from the fender.

Installation

  1. Follow removal procedures in reverse order.

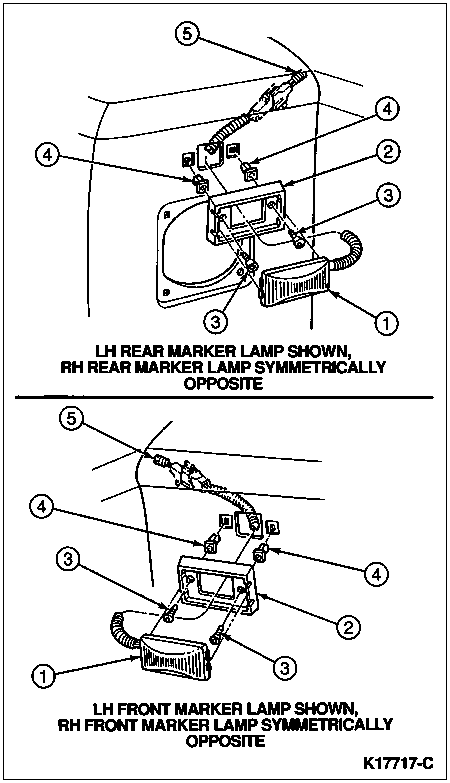

Rear Marker Lamp, F-350 Styleside and Dual Rear Wheels





ItemPart NumberDescription
115C400Lamp and Wiring Assembly
215B436Bezel Assembly (4 Req'd)
3N610128Screw (8 Req'd)
4383356Nut (8 Req'd)
515A411Wiring Assembly
