Follow removal procedures in reverse order.

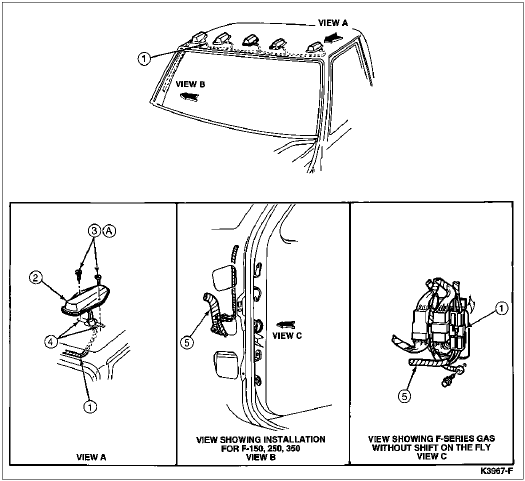

Roof Marker Lamps
| Item | Part Number | Description |
|---|---|---|
| 1 | 15A404 | Wiring Assembly |
| 2 | 15442 | Roof Marker Lamp Assembly |
| 3 | 55928 | Screw |
| 4 | 38814 | J-Nut |
| 5 | 14401 | Wiring Assembly |
| A | — | Tighten to 1.6-2.2 Nm (14-19 Lb-In) |
Section 17-01: Lighting, Exterior | 1996 F-150, F-250, F-350, F-Super Duty Motorhome and Bronco Workshop Manual |
Removal
Remove two screws securing marker to roof and lift lamp enough to see electrical connector.
Tape wiring assembly to roof of vehicle and disconnect electrical connector.
Remove marker lamp from vehicle.
Installation
Follow removal procedures in reverse order.
| Item | Part Number | Description |
|---|---|---|
| 1 | 15A404 | Wiring Assembly |
| 2 | 15442 | Roof Marker Lamp Assembly |
| 3 | 55928 | Screw |
| 4 | 38814 | J-Nut |
| 5 | 14401 | Wiring Assembly |
| A | — | Tighten to 1.6-2.2 Nm (14-19 Lb-In) |
